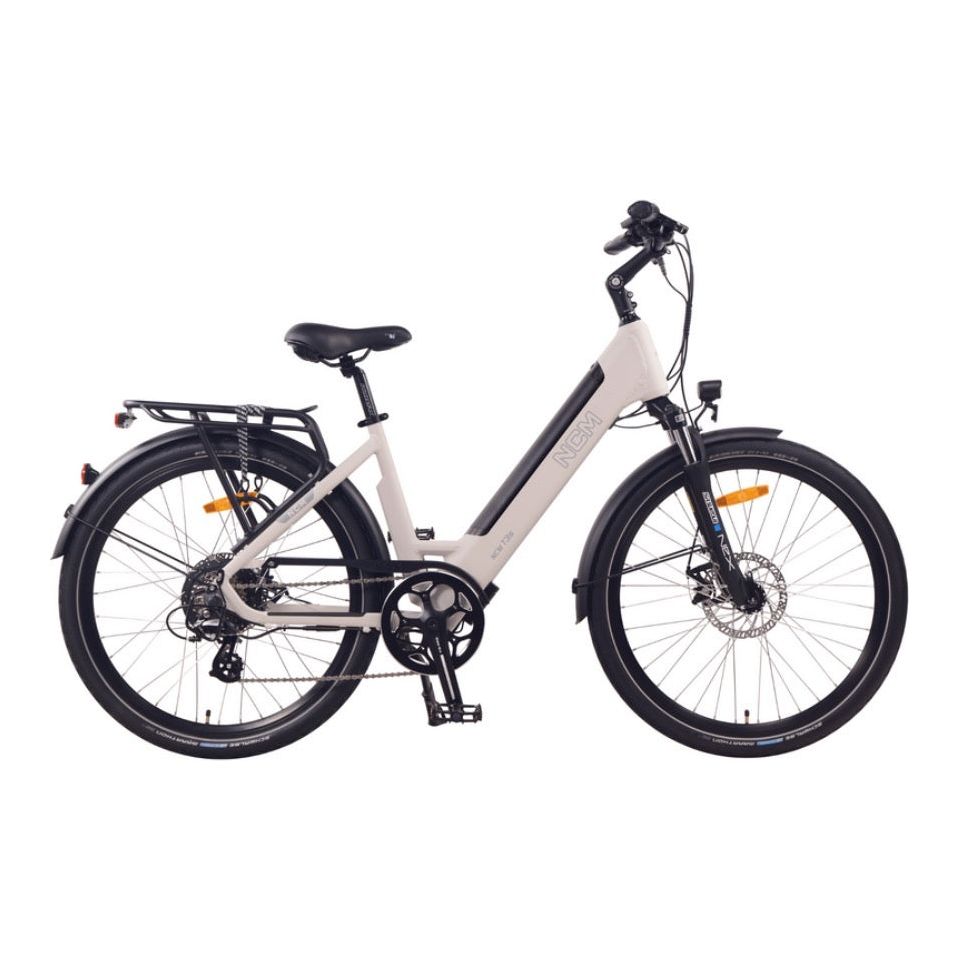

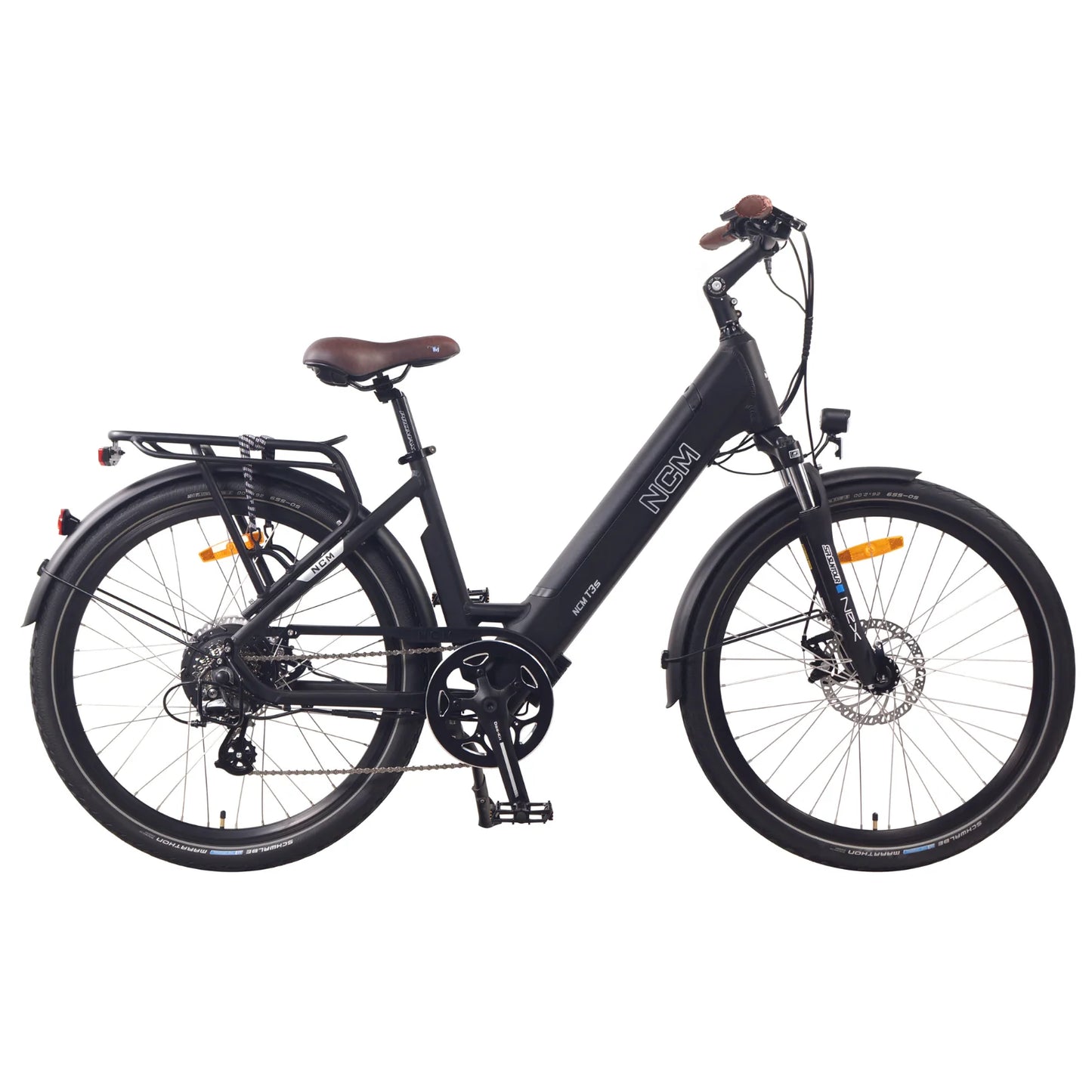

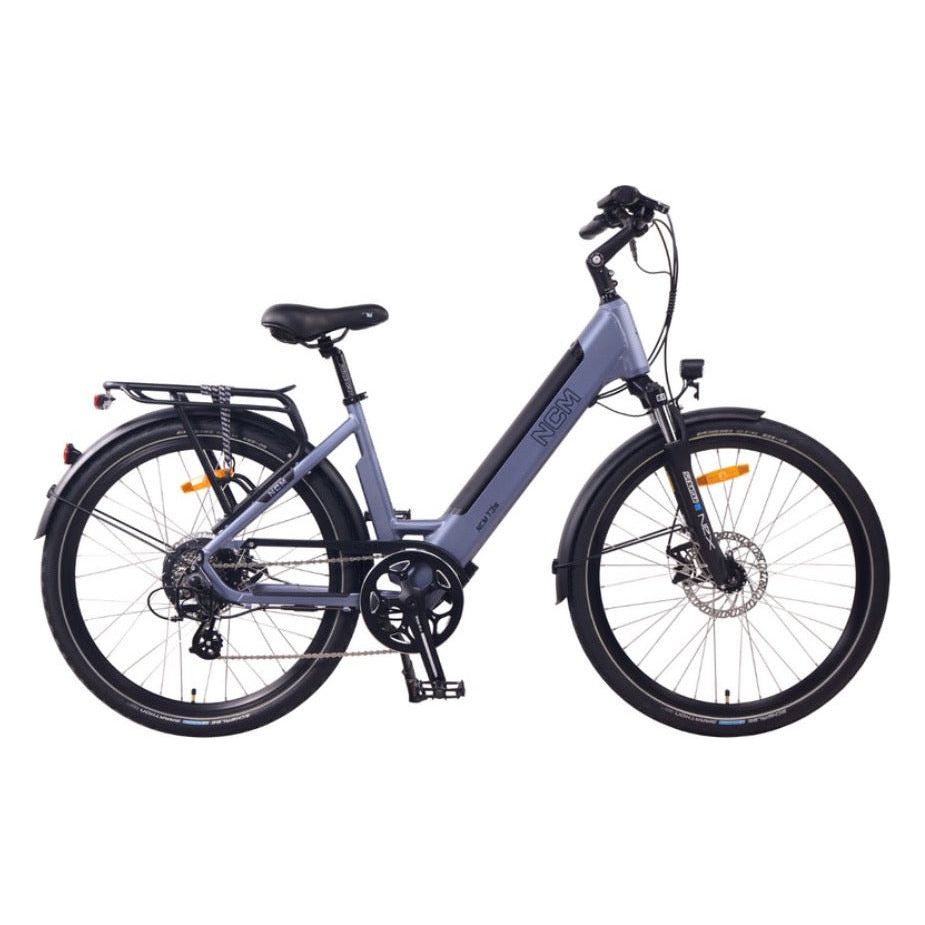

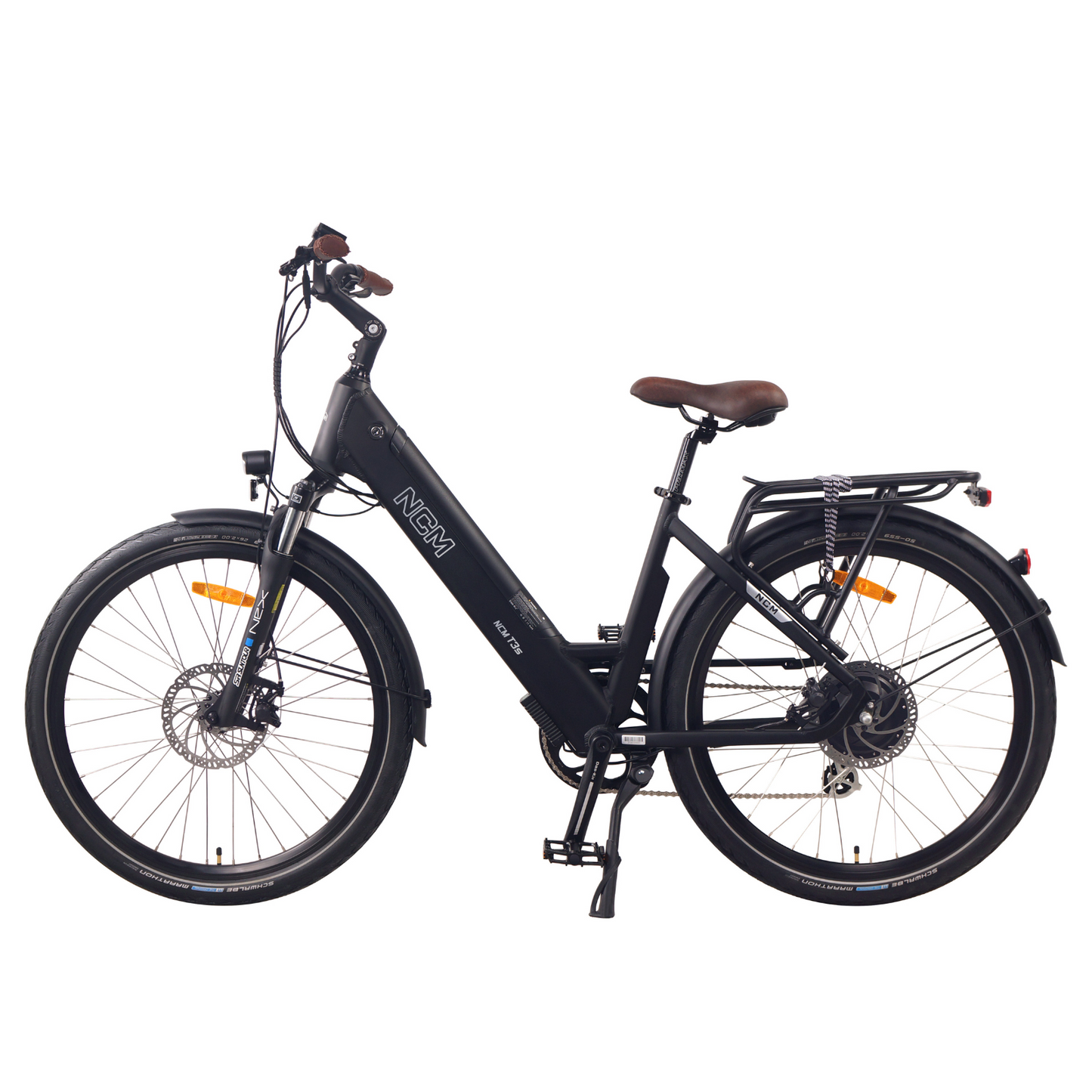

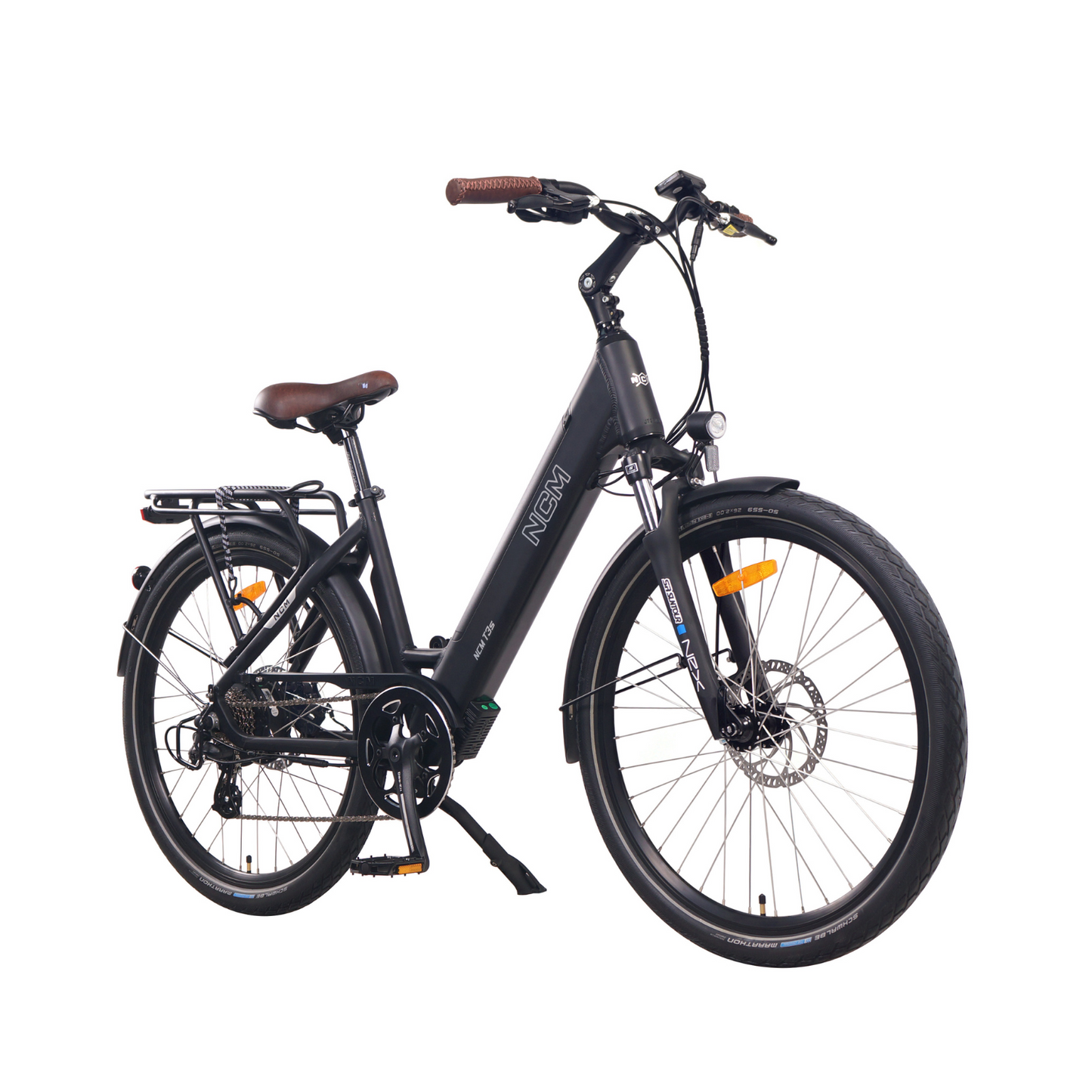

NCM T3S - Step-Thru Electric Bike

NCM T3S - Step-Thru Electric Bike

Low stock: 4 left

Regular price $1,699.00
Regular price Sale price $1,699.00
Sale Sold out
Tax included. Shipping calculated at checkout.
Color

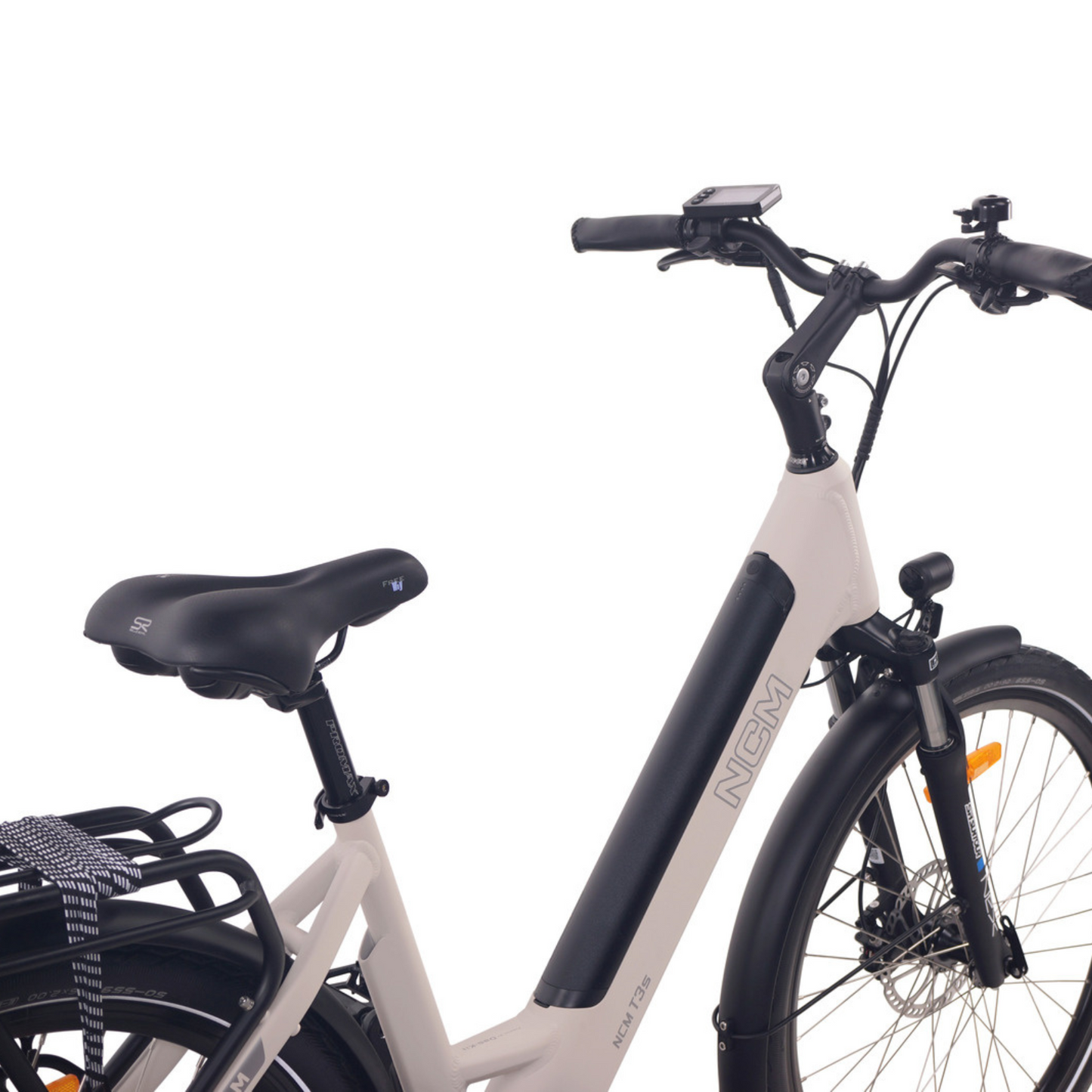

The new NCM T3S is the brand new generation of the NCM brand. Successor to the flagship NCM Milano, it features a new reinforced fully integrated, and removable battery in the frame, a sleek new design, improved ergonomics, and versatility ready to tackle any journey, short or long. The T3S offers more comfort and control than ever before and guarantees a pleasant ride thanks to an upright seating position, a low through frame, and optimized ergonomics with adjustable handlebars and a gel-padded saddle.


Key Features

  • Ergonomic bicycle Grips
  • Comfortable sitting posture
  • All important controls are easily accessible
  • Supplied with 48V to deliver a high-output power
  • over 576Wh capacity for a longer distance
  • reach up to 120 km (depending on the conditions)
  • easily removable battery so you can charge it anywhere

Specifications

Frame: Alu. 6061, 26"*16.5" inches

Suspension Fork: Suntour, NEX 26

Brake: F/R: Tektro Disc Brakes,MD-M280,180mm rotor

Freewheel: 7 Speed, 14-28T

Tire: Schwalbe, Marathon, 26*2.0, Black

Saddle: Selle Royal, FREEWAY

Stem: ZOOM, TDS-C269-8/ISO-P

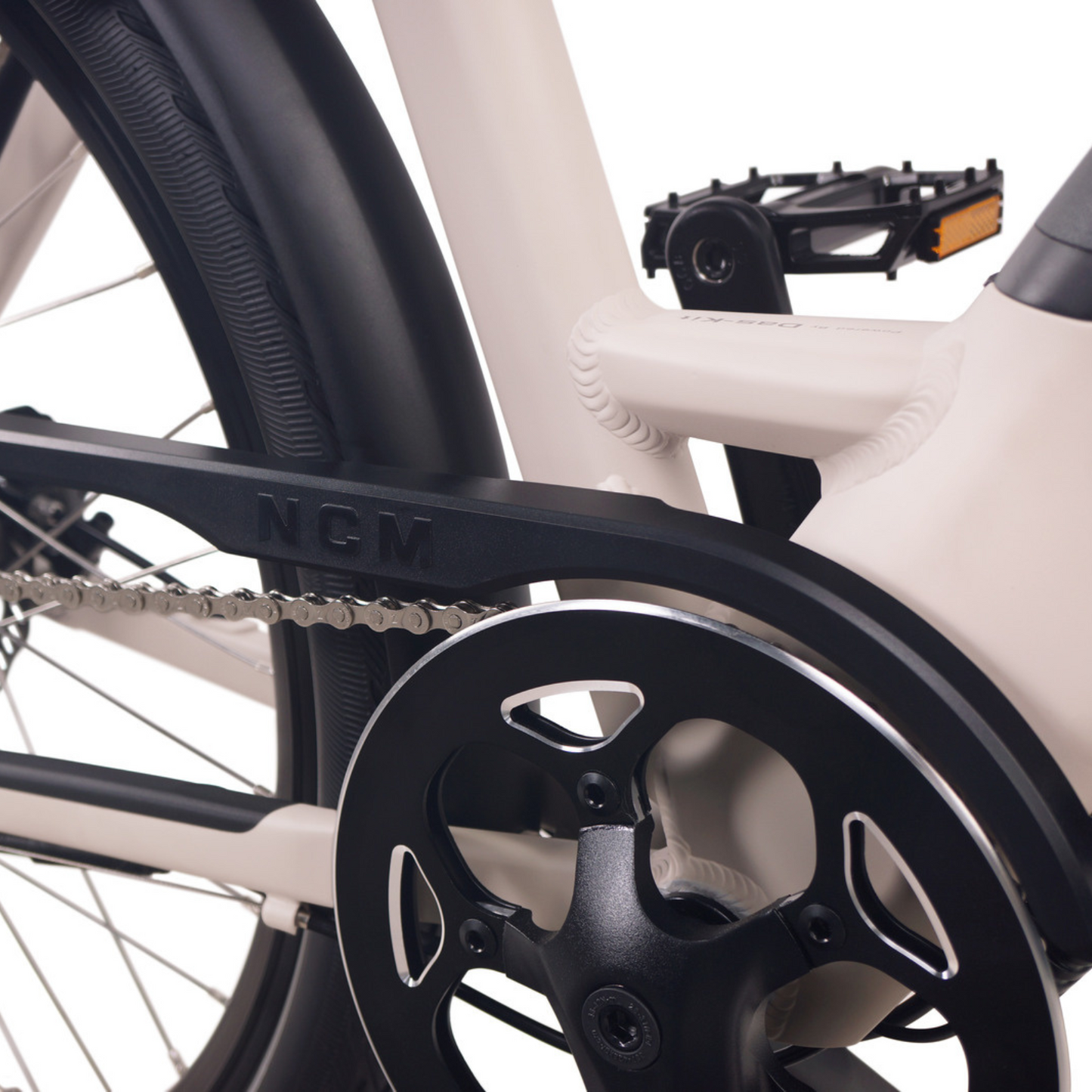

Crank: Das-Kit, CT48A, 48T

Shifter: Shimano, Altus, R:SL-M315-7R, 7 Speed

Derailleur: Shimano, Altus RD-M310

Chain: KMC, Z51

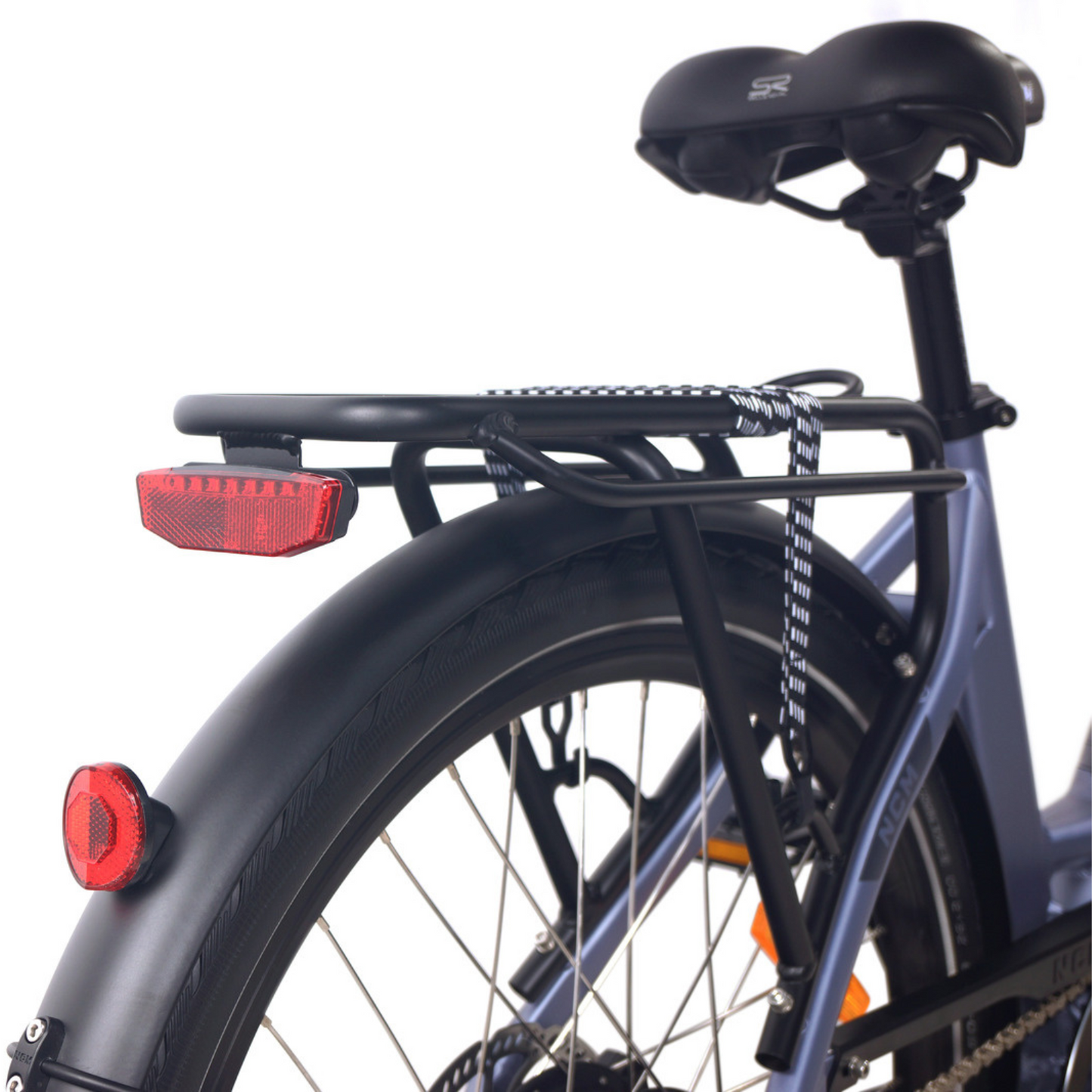

Rack: Rear Rack with Elastic Straps



ELECTRIC COMPONENTS

Battery: Das-Kit, i6-4812, 48V 12AH, 576WH

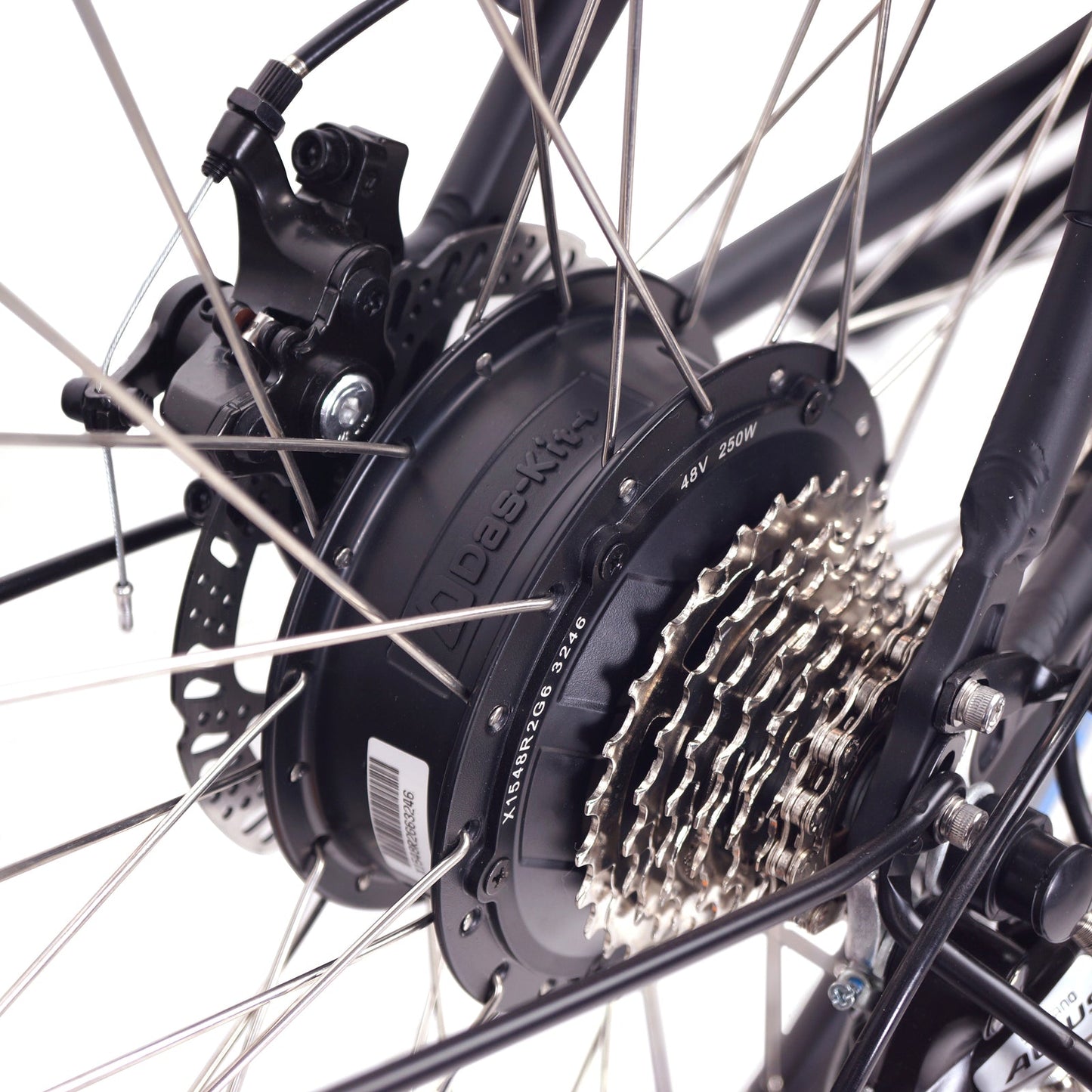

Hub Motor Rated: Das-Kit, X15, 48V 250W

Controller: Das-Kit, CT-i6, 48V18A

Charger: Das-Kit, 48V2A

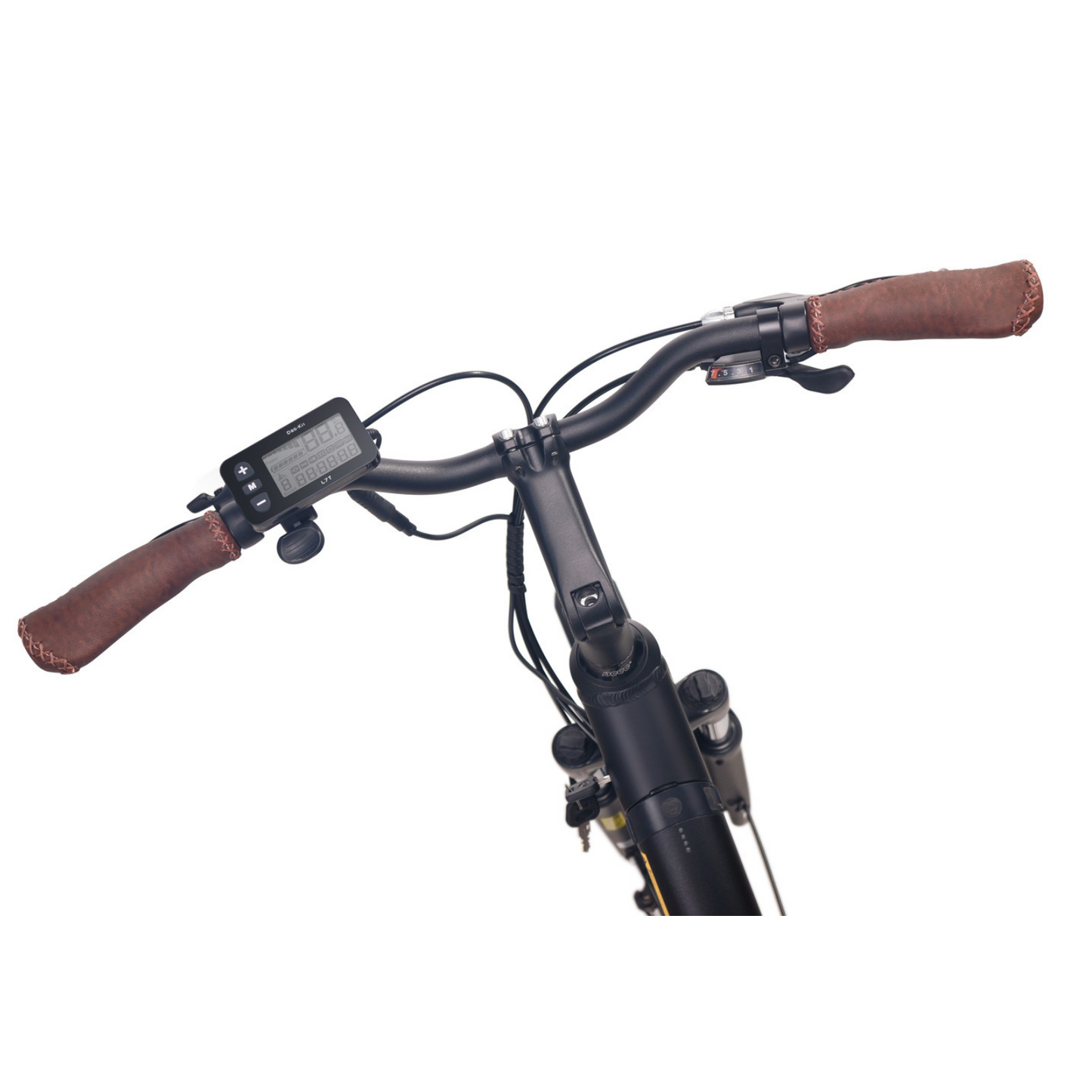

Display: Das-Kit, L7T

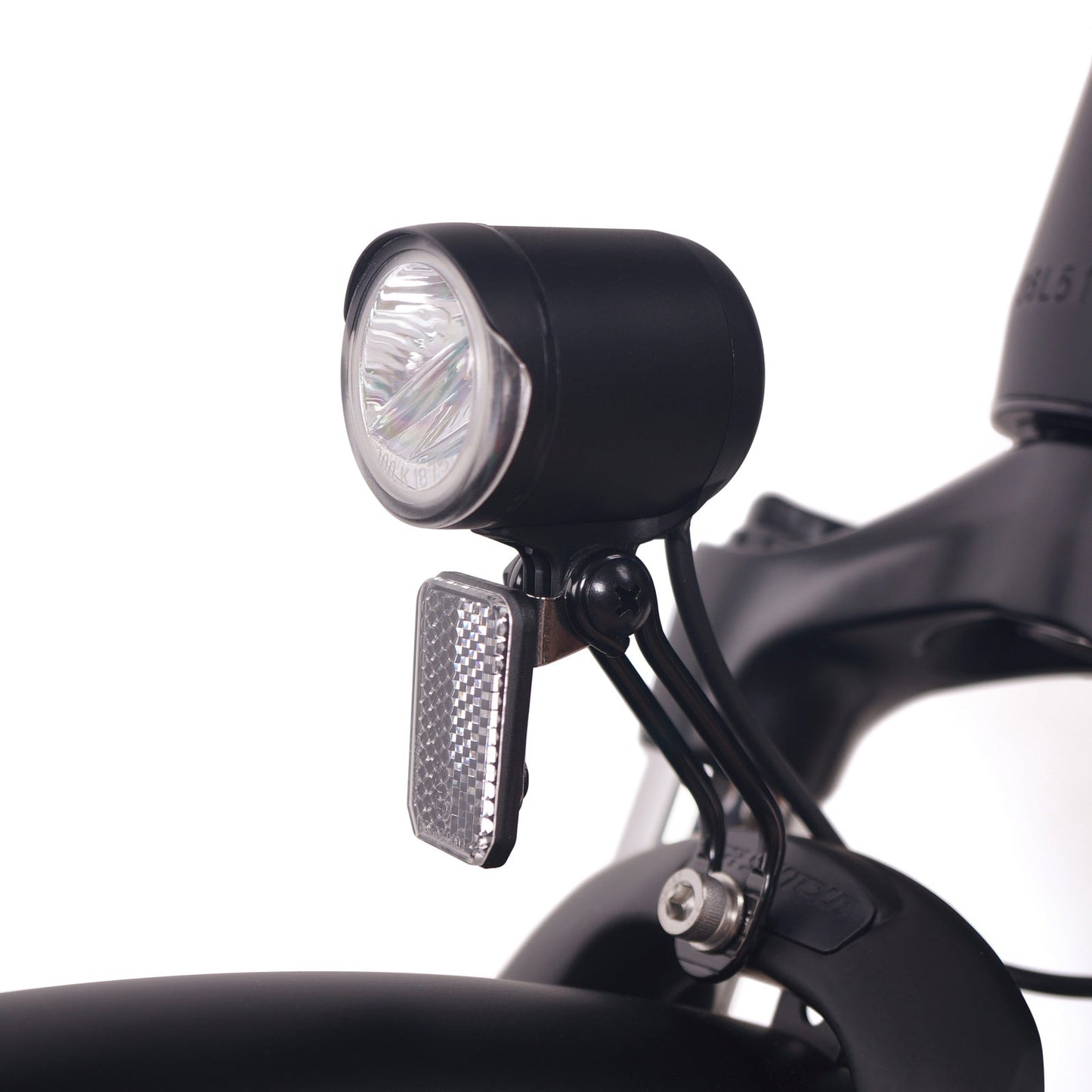

Front Light: DH002, 48V, 40 Lux

Rear Light: Spanninga, Kendo, DR009, AAA*2



WEIGHT

Net Weight (with battery): 26.0kg

Battery Weight: 3.5kg

Max Load (driver+bike): 140kg
