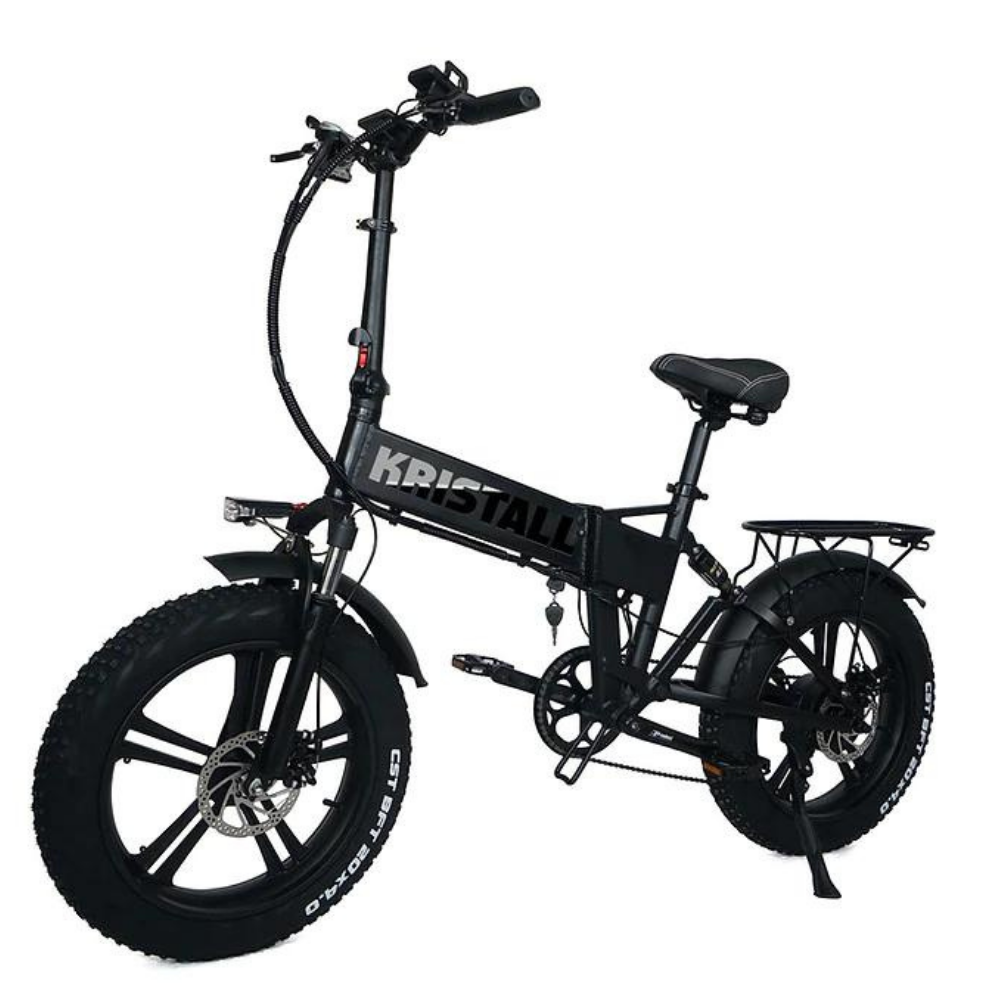

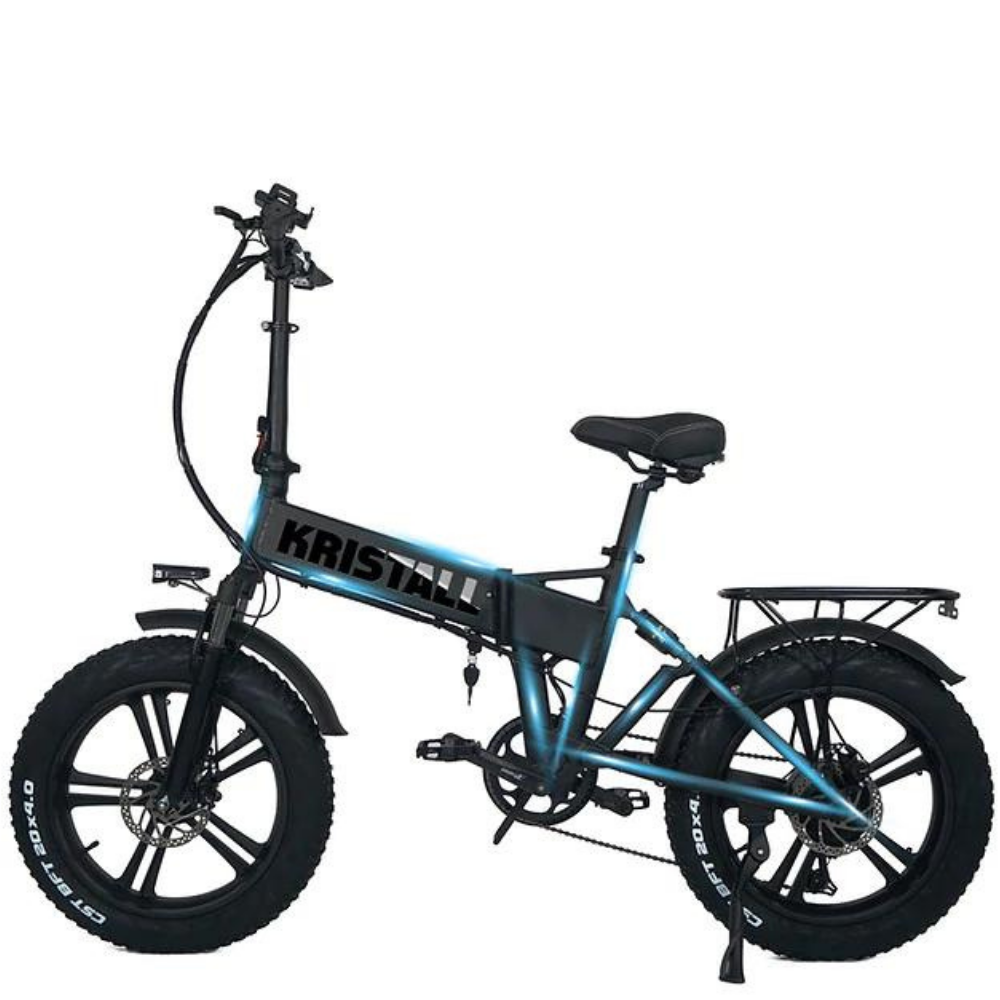

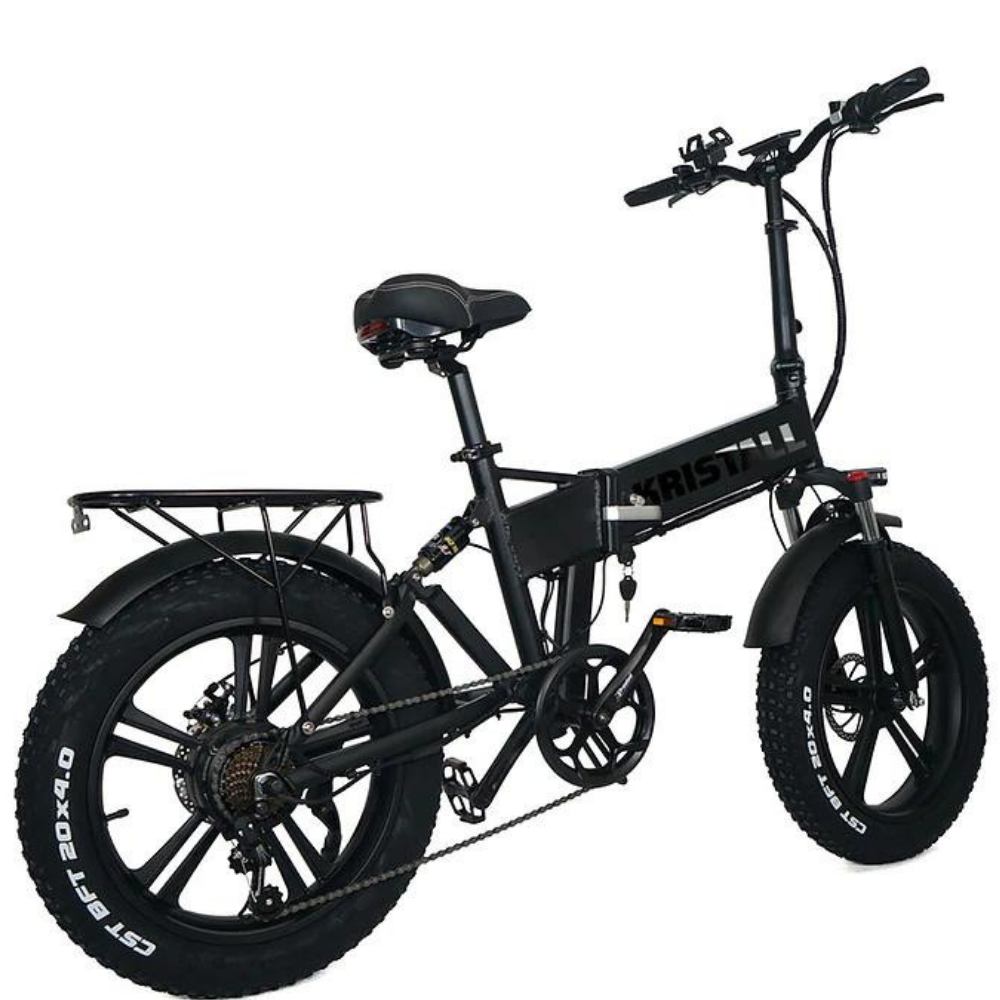

Kristall RX20

Brand

KRISTALL

Mode

RX20

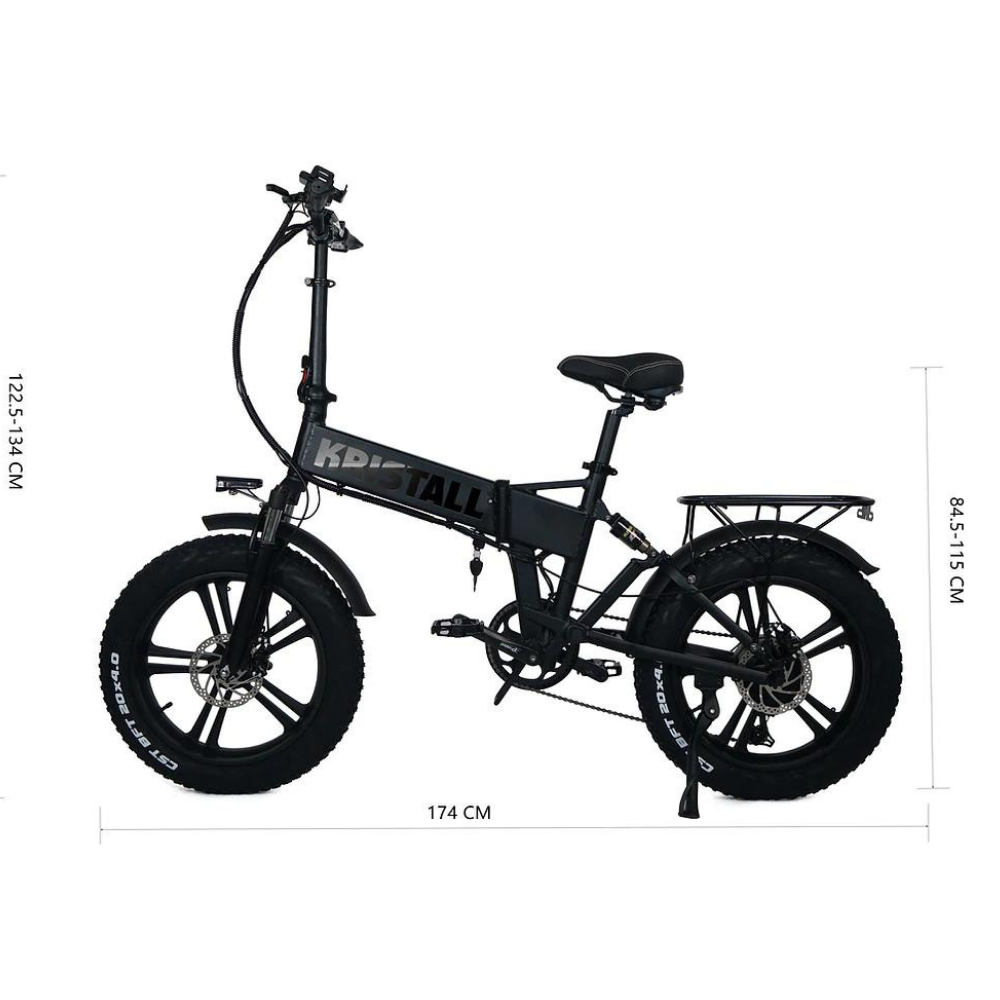

Overall size

Bike length: 172cm

Seat height: 84.5-115cm

Handlebar height: 122-127.5cm

Rear seat height: 65cm

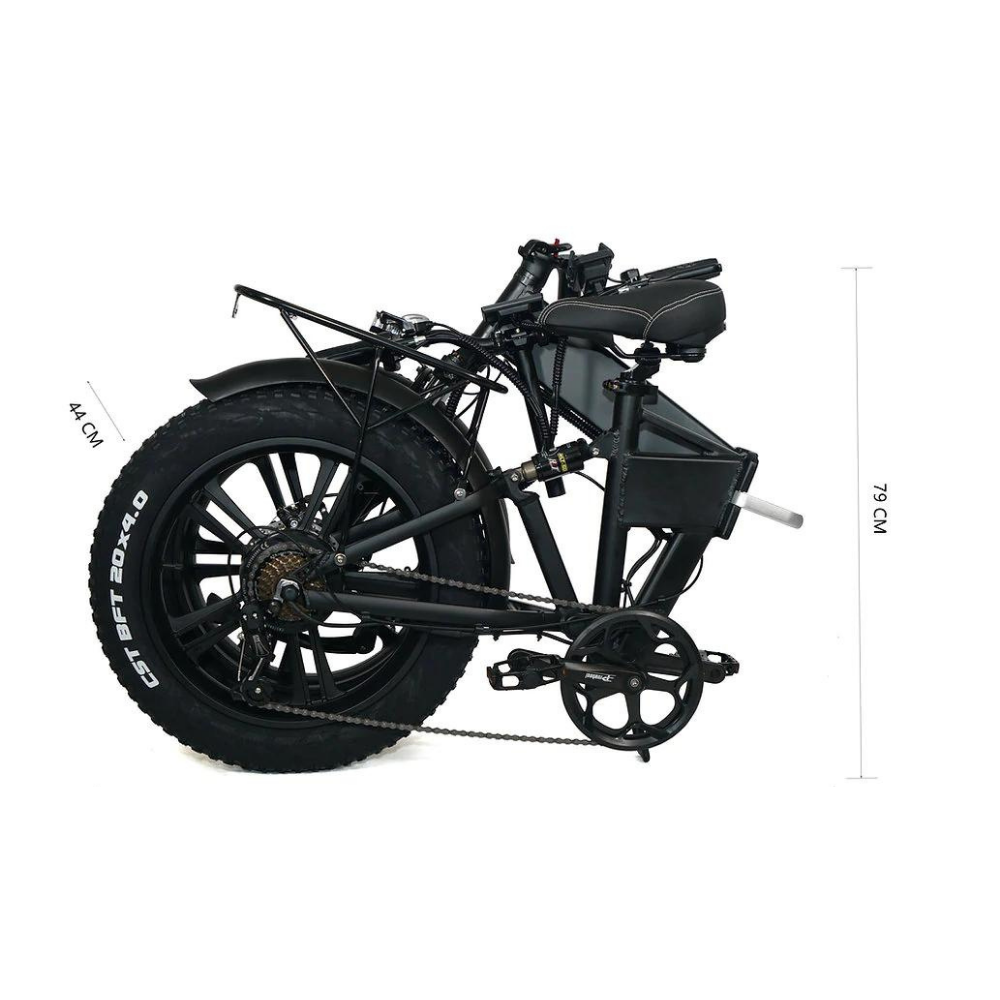

Size after folding

95*75*48cm

Package Size

97*81*48cm

Max weight load
of the rear rack

120kg

Max. Loading

150kg

Net weight

27kg

Gross weight

36KG

Battery weight

4KG

Top speed

30-45km/h

Range

Pure Electric: 40-55km
Boost Mode: 80-110km

Grade Ability

30 degree

Battery type

18650 Lithium battery

Rated voltage (V)

48V

Input voltage (V)

54V

Battery capacity (AH)

17Ah

Motor power

750W

Input voltage (V)

100-240V

Rated current

2A

Tire

CST 20*4.0in

Frame material

Aluminium alloy 6061

Gear

7 Speeds Gear

Torque (Nm)

80Nm

Charging socket

European Standard Round Head

Pattern

1. Electric-only mode
2. Cycling mode ( without electric )
3. Assistant mode

Brake

Disc brake
