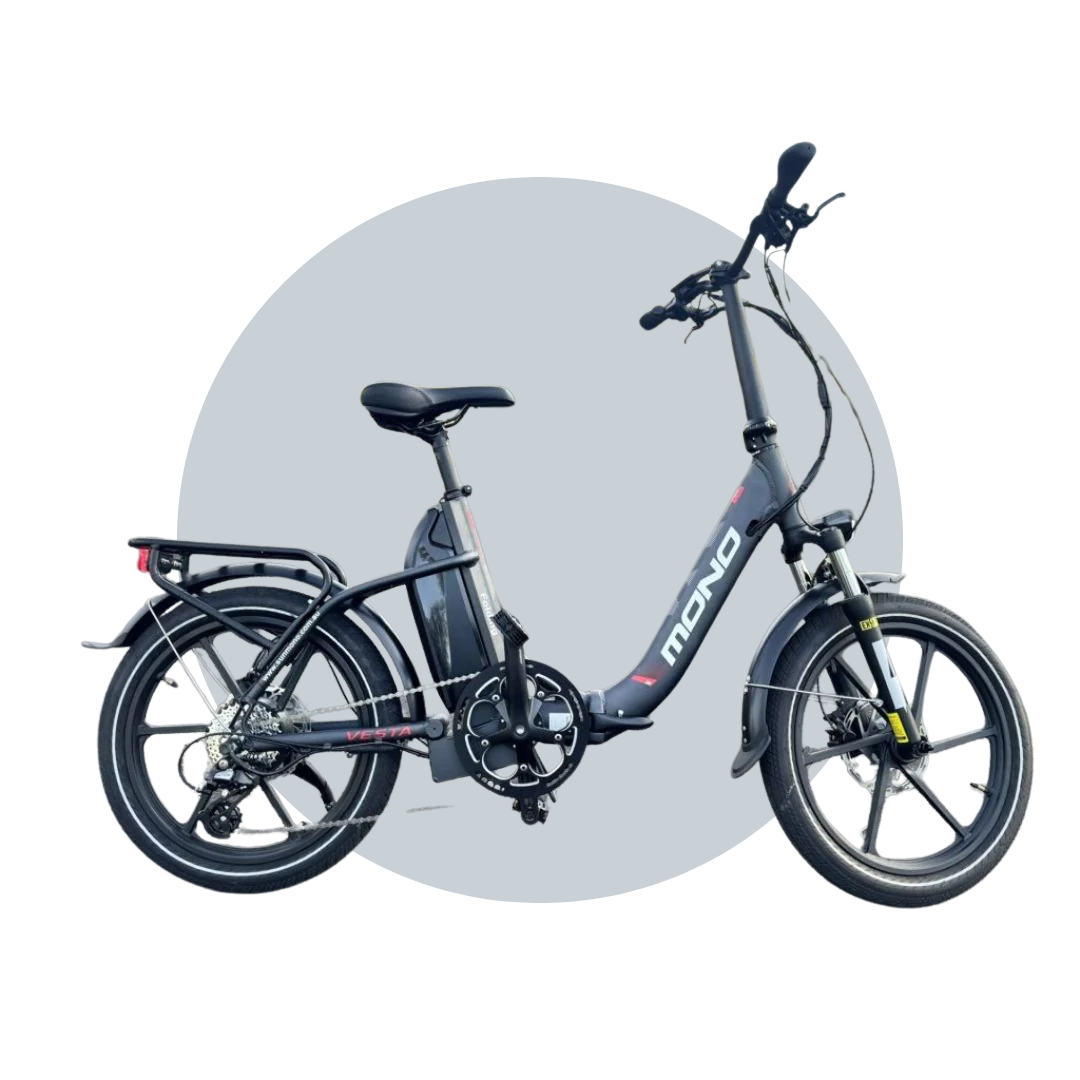

eMono VESTA PLUS Folding eBike 6 Months Free Service

• 48V 500W HI-TORQUE MOTOR – 576WH HIGH POWER BATTERY

• 20” KENDA TYRES – HYDRAULIC DISC BRAKES

• FOLDING LIGHTWEIGHT FRAME – ONLY 23.7KG TOTAL WEIGHT

• PEDAL ASSIST & THROTTLE – 6KM/H WALKING SPEED LIMIT

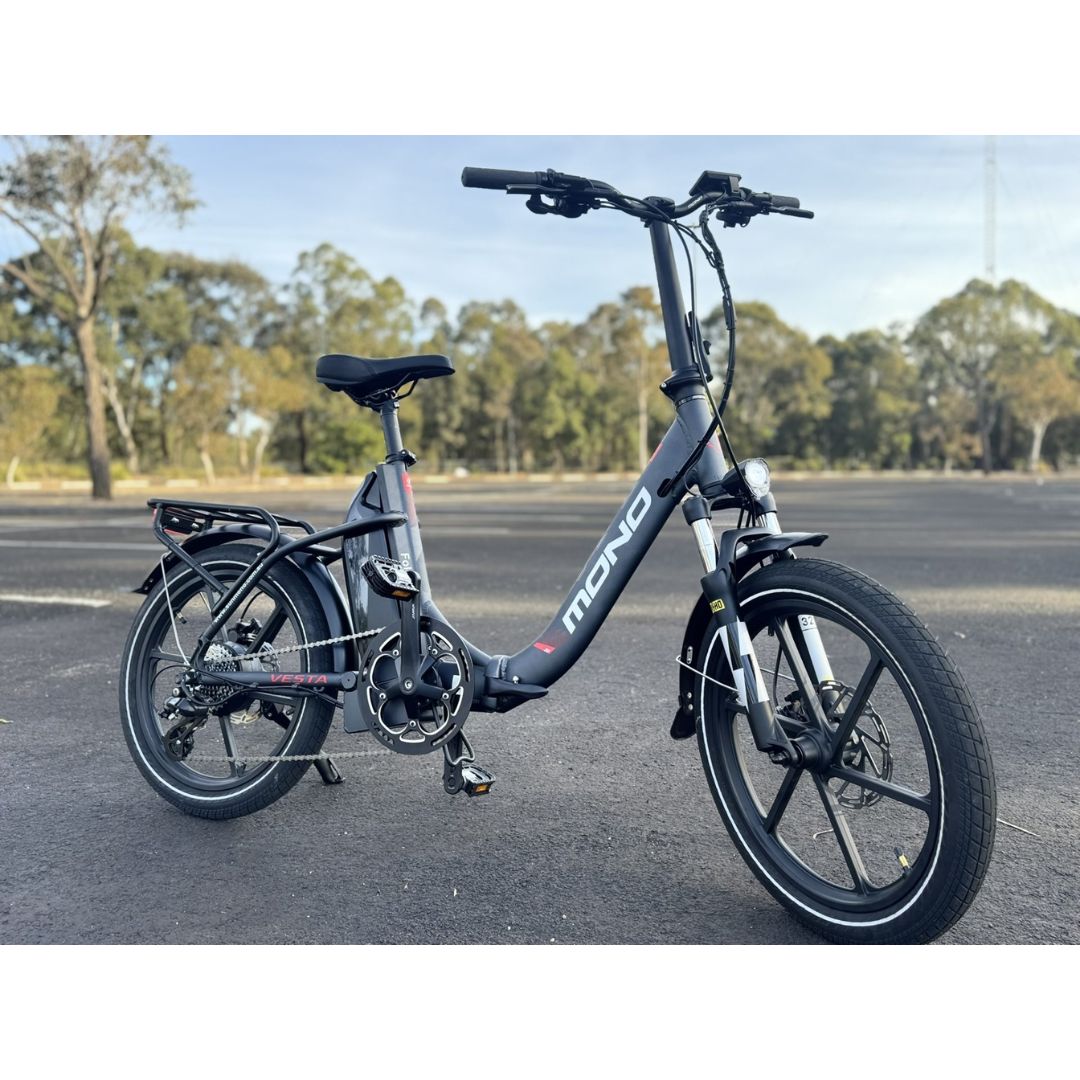

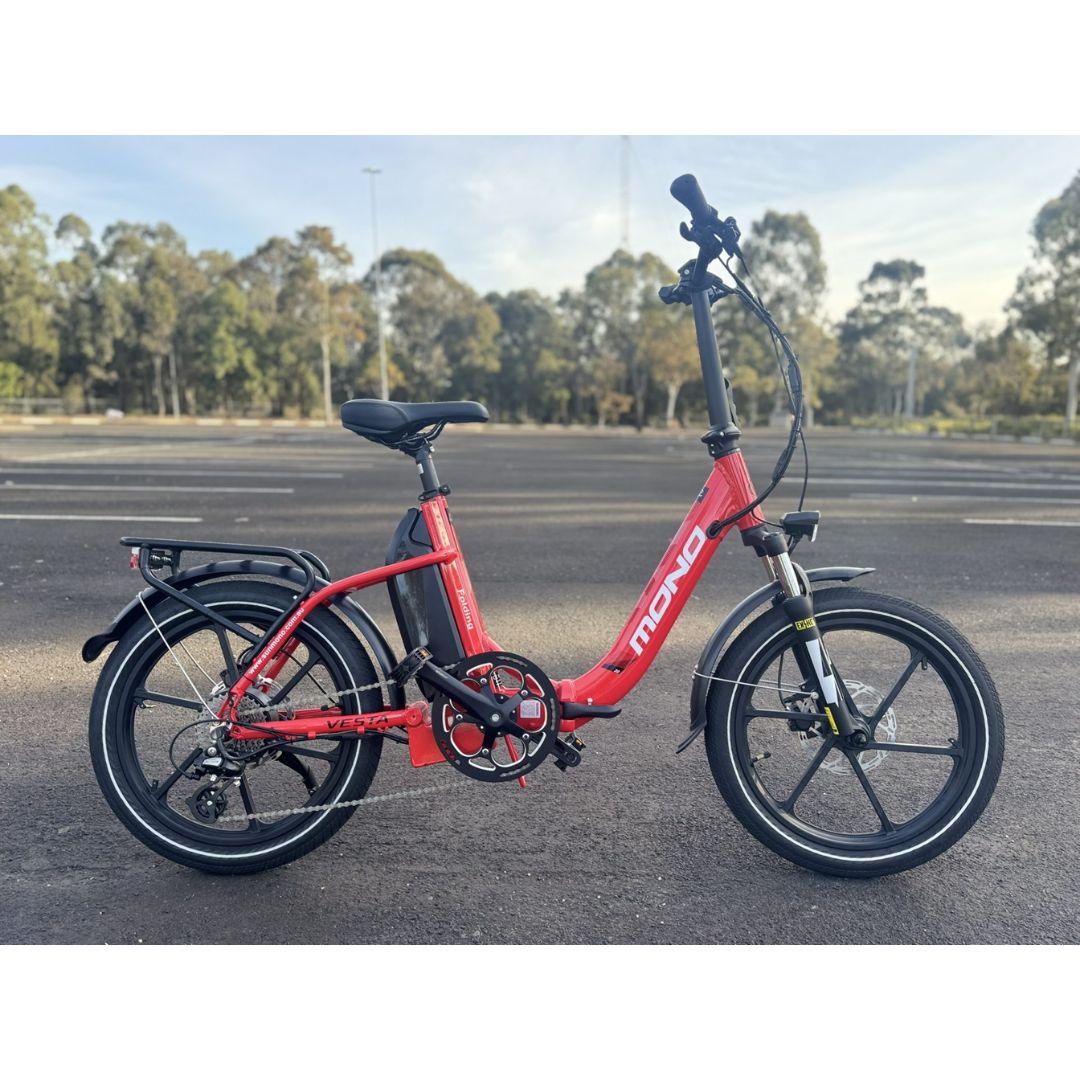

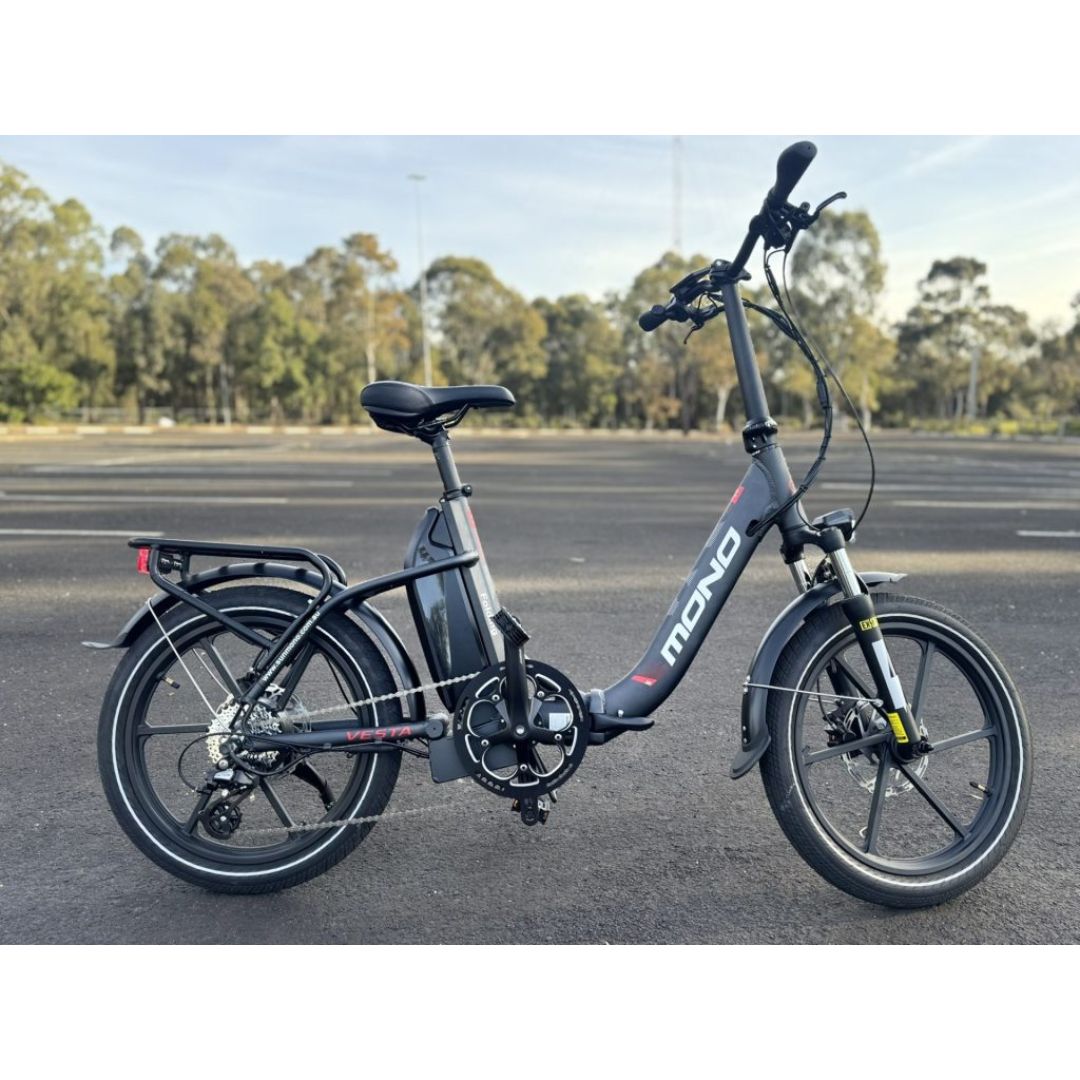

The E-Mono VESTA PLUS – Folding Urban Explorer is the perfect e-bike for riders who value portability without sacrificing performance. Built around a lightweight folding alloy frame, it’s compact enough for caravan parks, car boots, and city apartments, yet strong enough for daily commuting or weekend rides. Powered by a high-torque 500W motor and a 576Wh battery, it delivers smooth pedal assist with up to 70km of range. With premium components, spokeless wheels, and a 22kg total weight, the VESTA PLUS is your go-to for travel, storage, and smart city riding.

Description

🔧 Core Specifications

• Frame: Lightweight Aluminium-Alloy Folding Frame

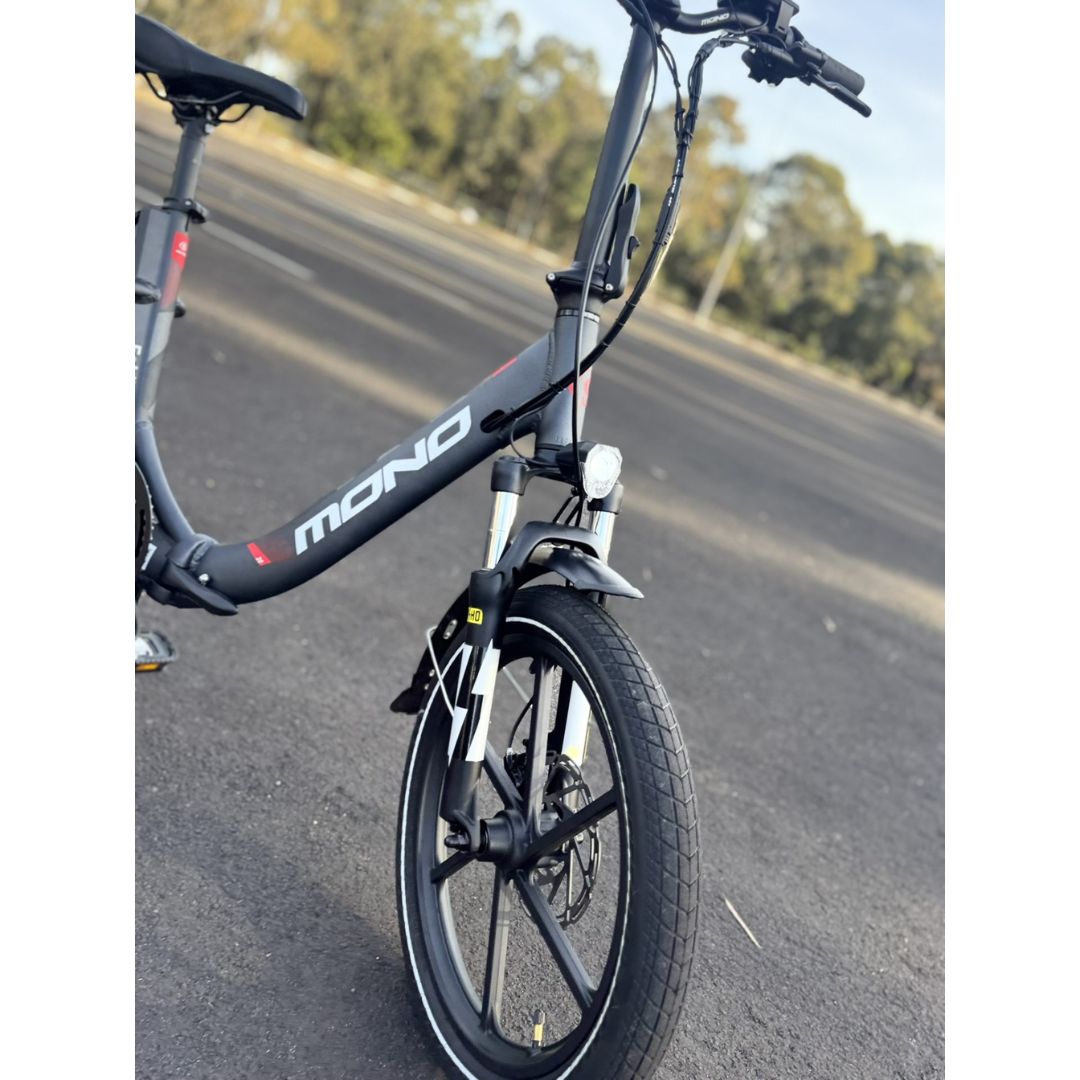

• Fork: Suspension Front Fork

• Seatpost: Quick Release 320mm

• Saddle: Comfort Padded Leather

• Handlebar: Folding Alloy Bar

• Weight: 23.7kg (including battery)

• Max Load Capacity: 120kg

• Front Wheel: Quick Release Design

• Lighting: Integrated Front & Rear LED with Brake Light System

• Wheels: Spokeless Alloy Rims

🔁 Drivetrain

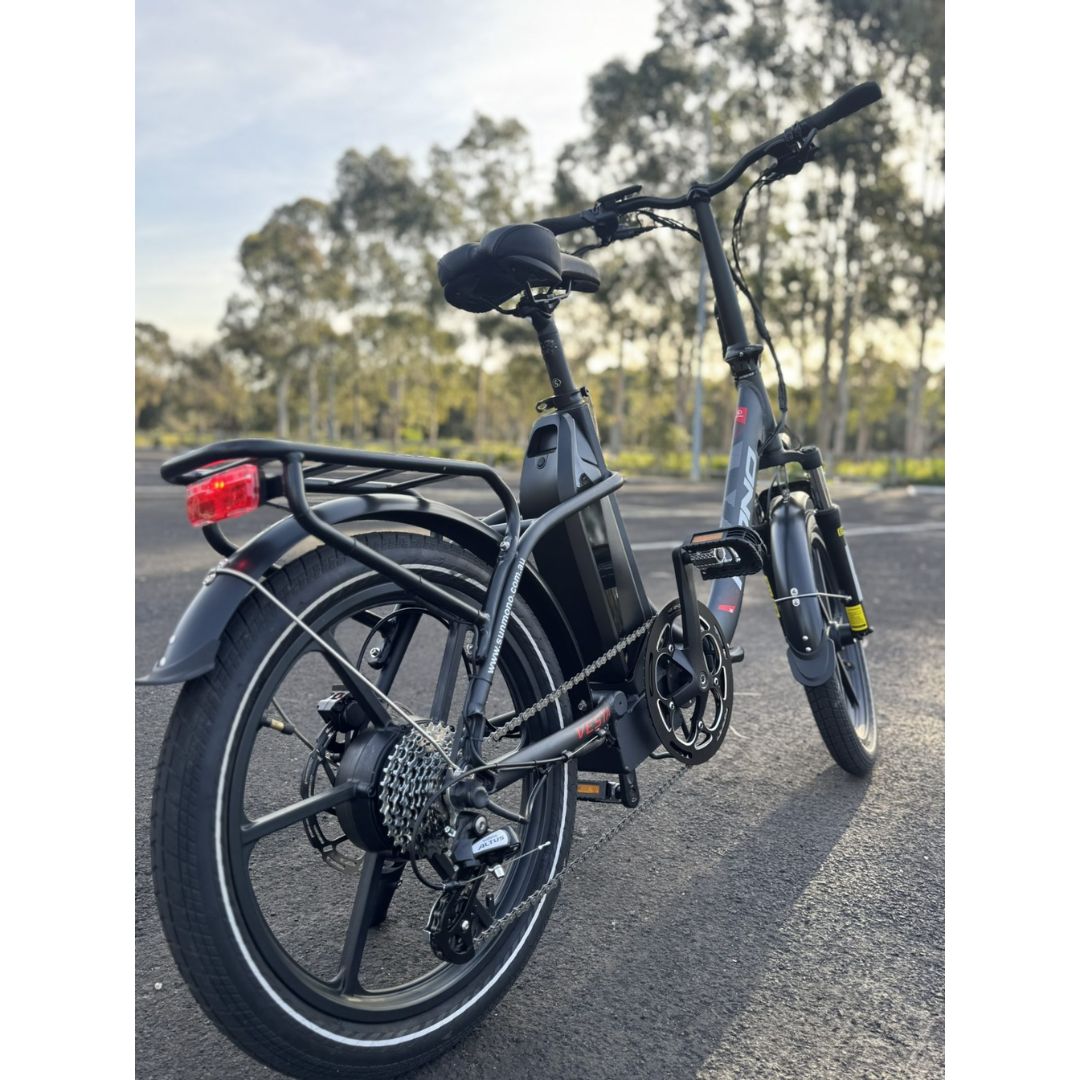

• Gearing: Shimano Altus 8-Speed Cassette with Shifter

• Cranks: Aluminium Alloy

🛞 Wheels & Tyres

• Wheel Size: 20”

• Tyres: Kenda 20” x 2.4” – Extra Puncture Resistant

🛑 Braking System

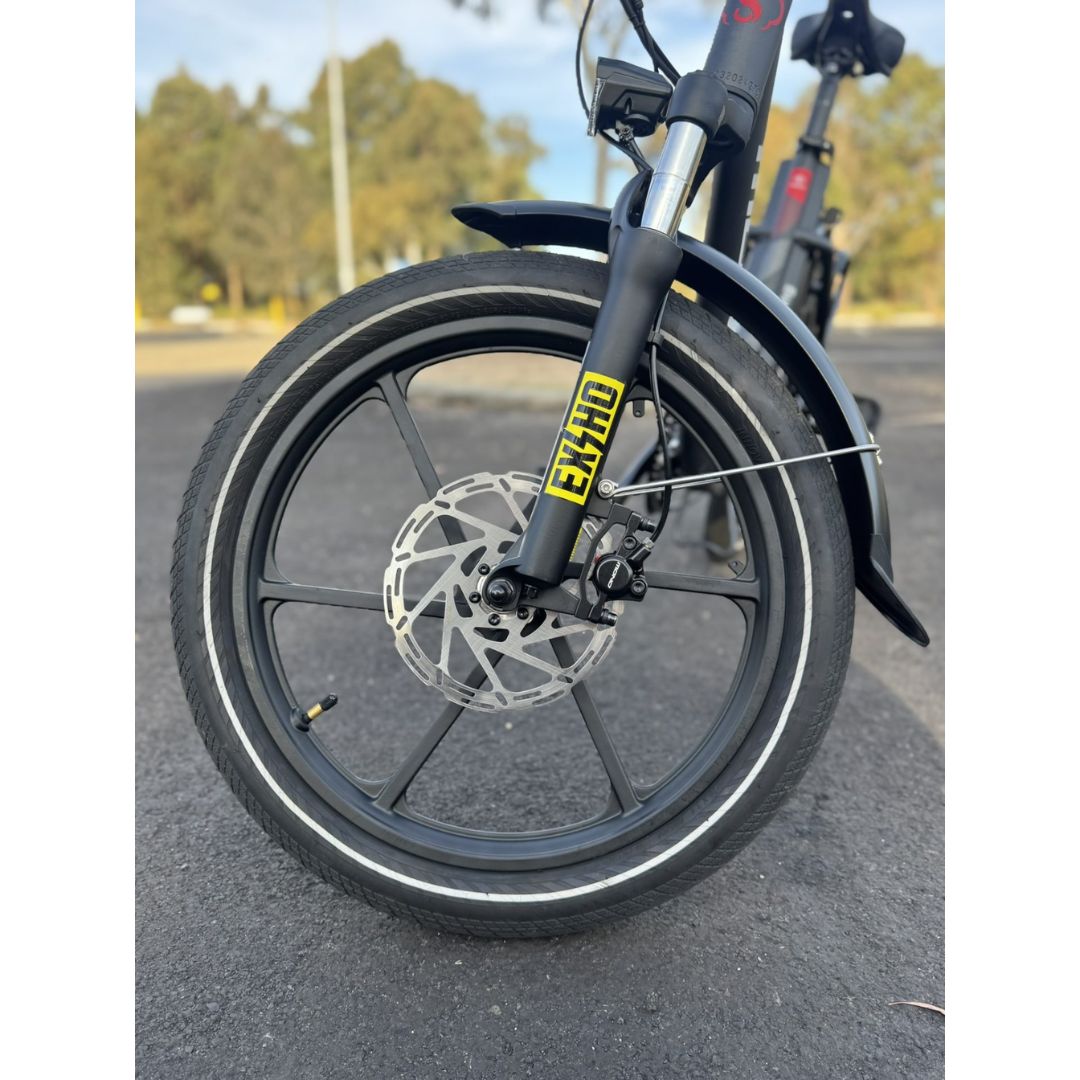

• Front Brake: Hydraulic Disc – 180mm

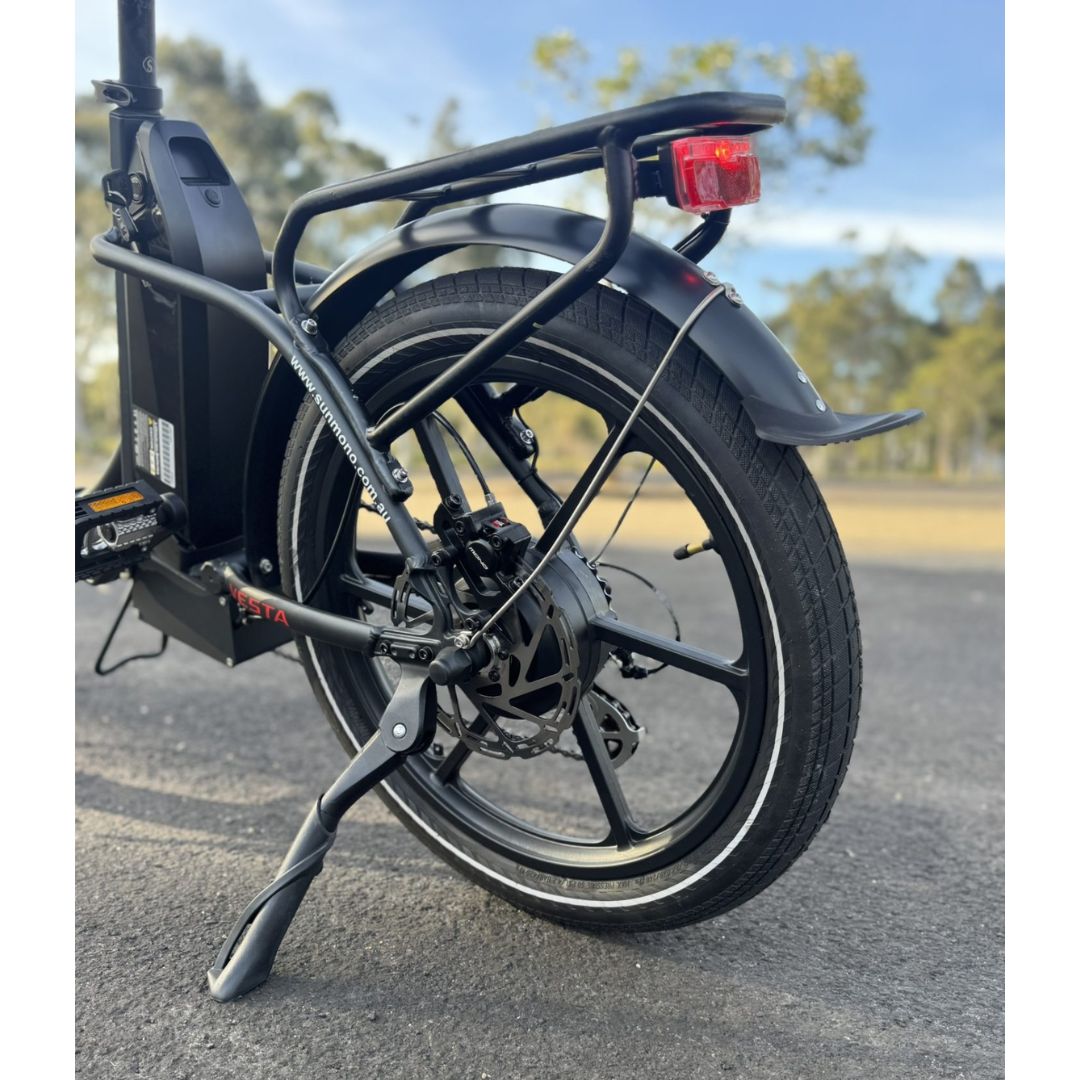

• Rear Brake: Hydraulic Disc – 160mm

⚡ Electric System

• Motor: 48V 500W Brushless Rear Hub Motor (can be limited to 250W to meet state regulations)

• Battery: 48V 12Ah (576Wh) Lithium Battery with High Power Cells

• Range: 50–70km per charge (depending on assist level & terrain)

• Pedal Assist: 5 Levels – Max Speed 25km/h

• Throttle: Enabled – Walking pace only (6km/h limit)

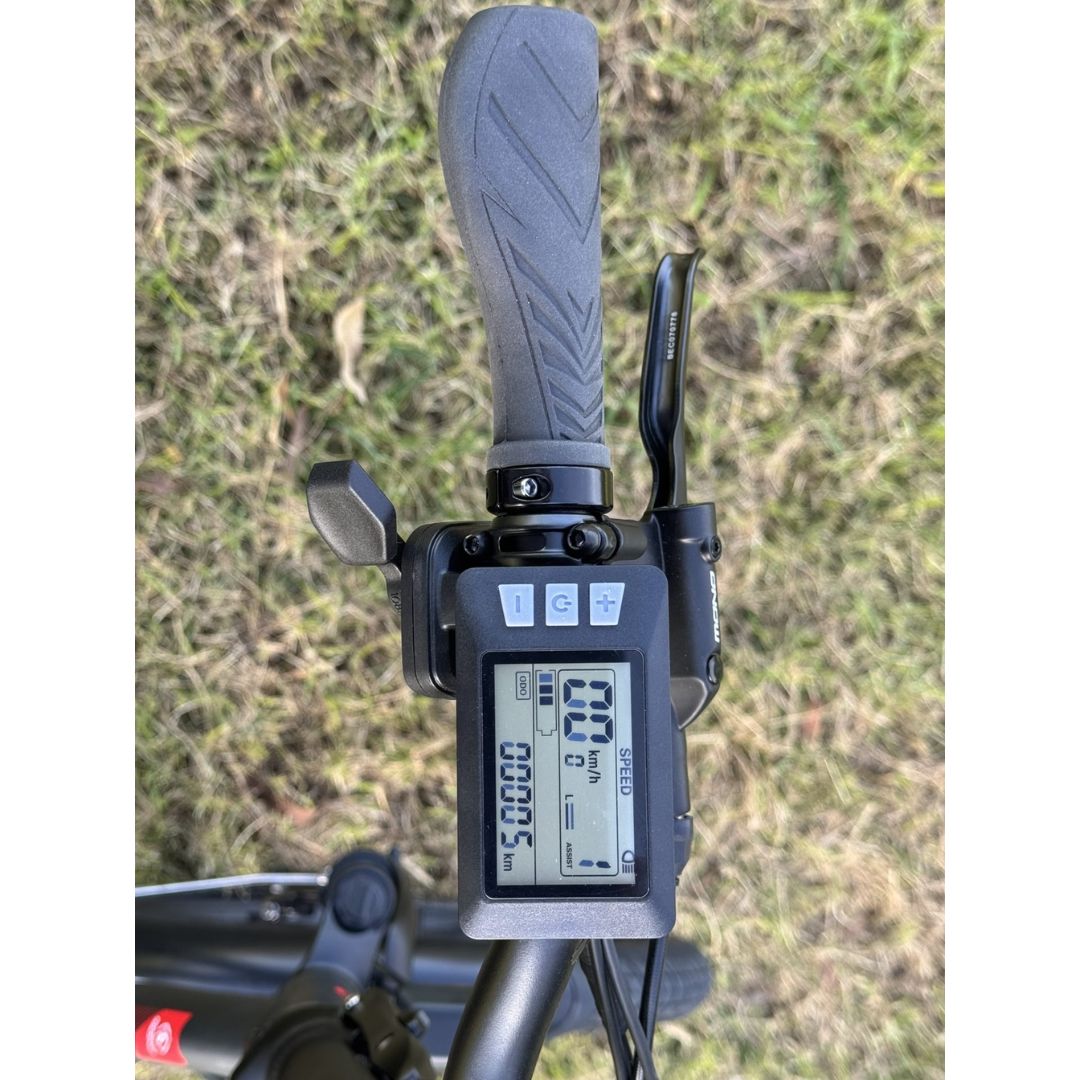

• Display: Multi-Function LCD Panel with USB Charging Port

• Controller: 48V 15A

• USB Output: Yes

• Charge Time: Approx. 4–5 hours

🔌 Charger Specifications

• Model: DPLC 110V55

• Output: 54.6V DC, 2.0A

• Input: 110–240V AC, 50/60Hz

• Connector: 1-Pin DC Barrel

• Certifications:

  • CE Certified

  • UKCA Compliant

  • SAA Approved (Australia)

• Safety Protections: Over-voltage, over-current, short-circuit, reverse polarity

• Plug: Australian Standard

• Manufacturer: Wuxi DPower Electronic Co., Ltd.

🛠 Assembly & Maintenance

Your Vesta Plus arrives 85% pre-assembled. We recommend final setup and safety checks by a certified bicycle mechanic. A tune-up after one month is also recommended to ensure proper alignment and calibration.

⚠️ Disclaimer

This product complies with Australian e-bike regulations and is limited to a maximum speed of 25km/h using pedal assist. The throttle is limited to 6km/h for walking assistance. The 500W motor can be electronically limited to 250W for use in states where required. Riders are responsible for ensuring compliance with local laws.

Additional Information

Size Chart

F. Overall Length 1620mm
