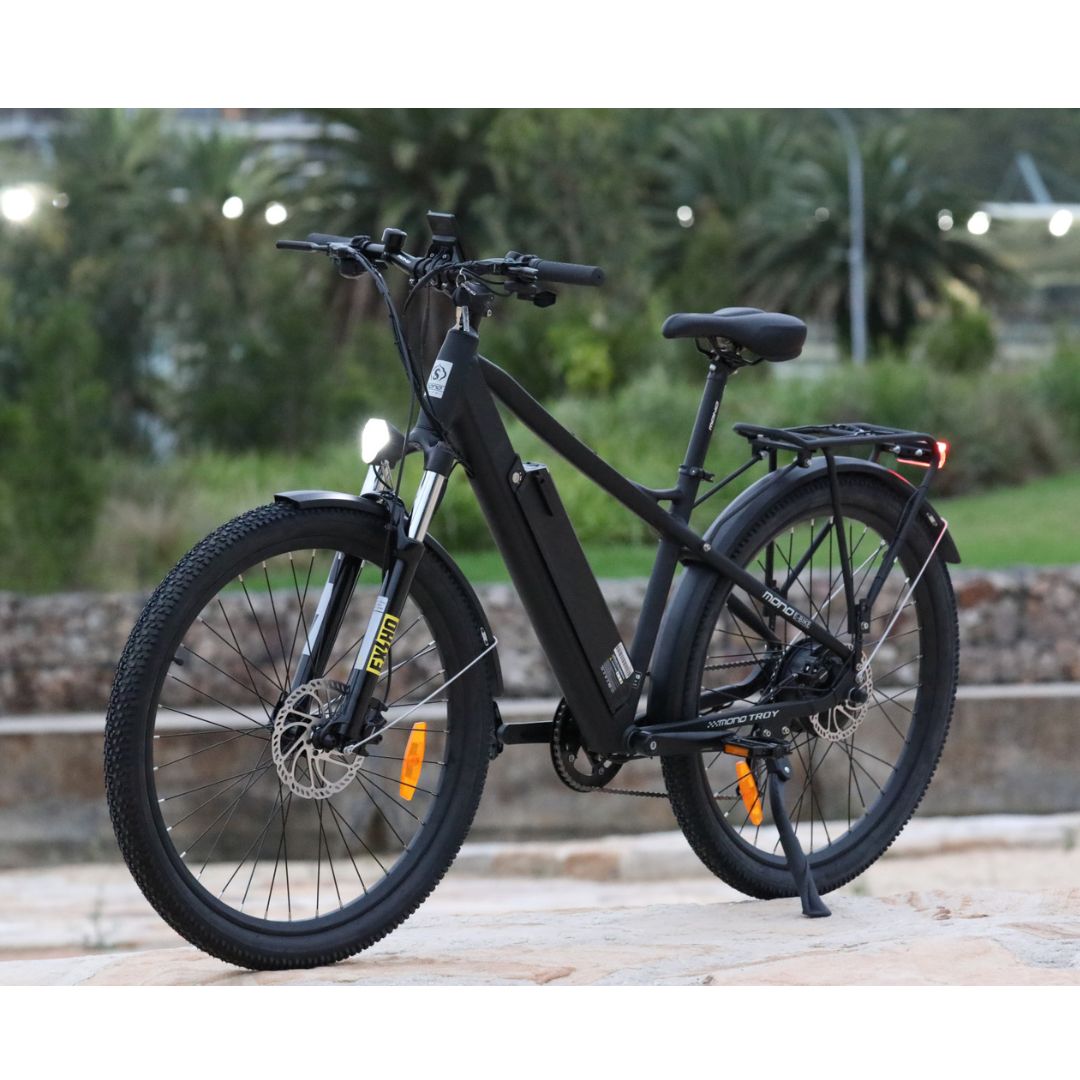

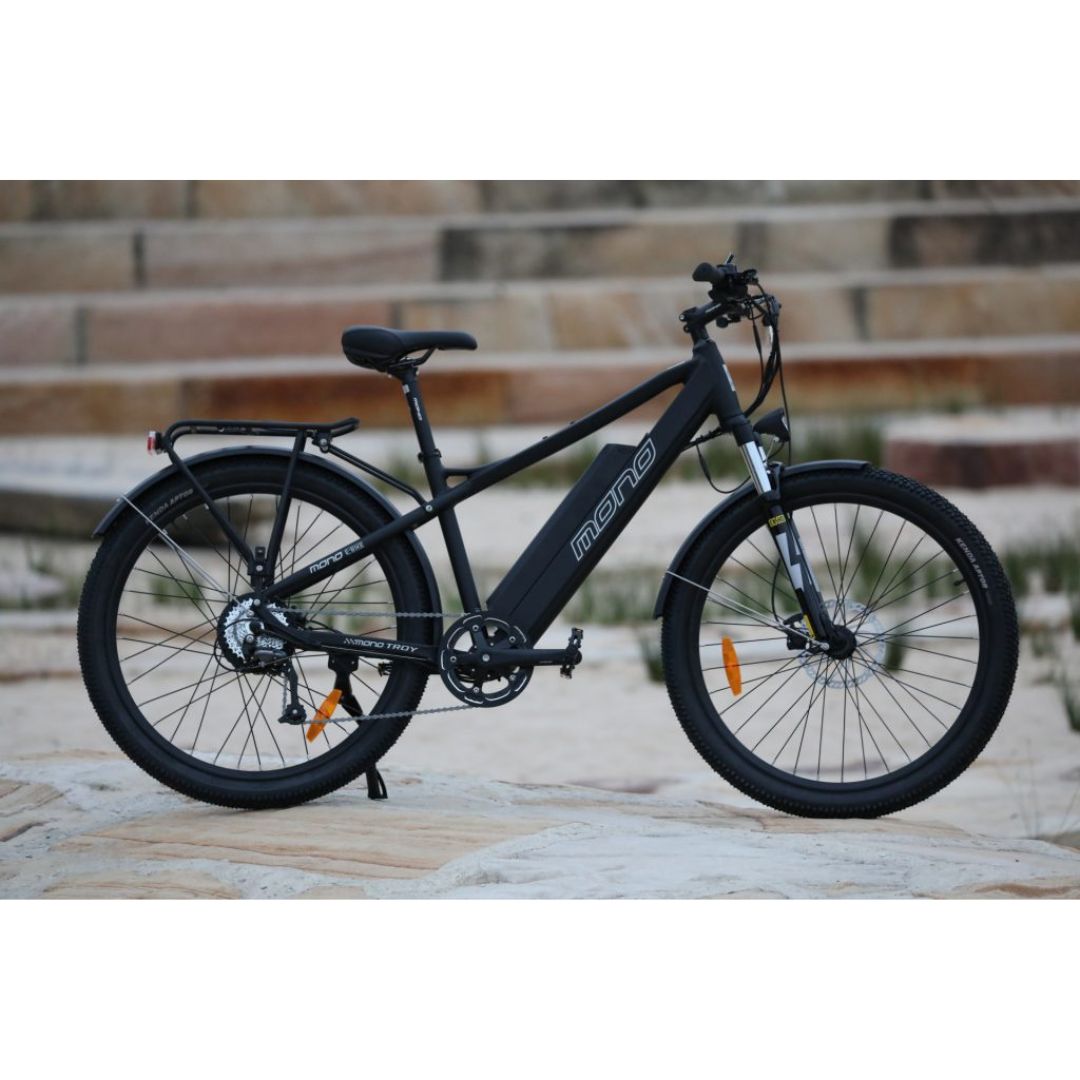

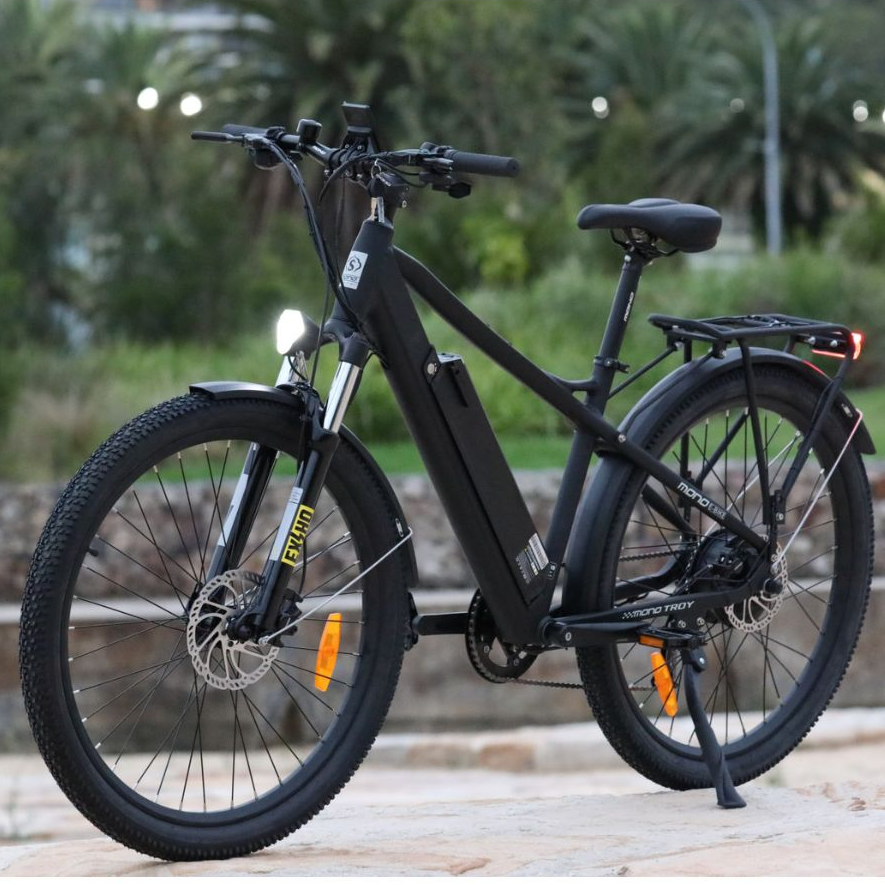

eMono TROY EQP Fully Equipped Trail Capable City Smart 6 Months Free Service

• • GEMMA HYDRAULIC DISC BRAKES – 180/160mm ROTORS

  • 720WH SAMSUNG CELLS – 48V 15AH BATTERY

  • ALLOY MUDGUARDS, REAR RACK & LIGHTING SYSTEM

  • 24.5KG EMTB – VERSATILE & READY FOR ANY RIDE

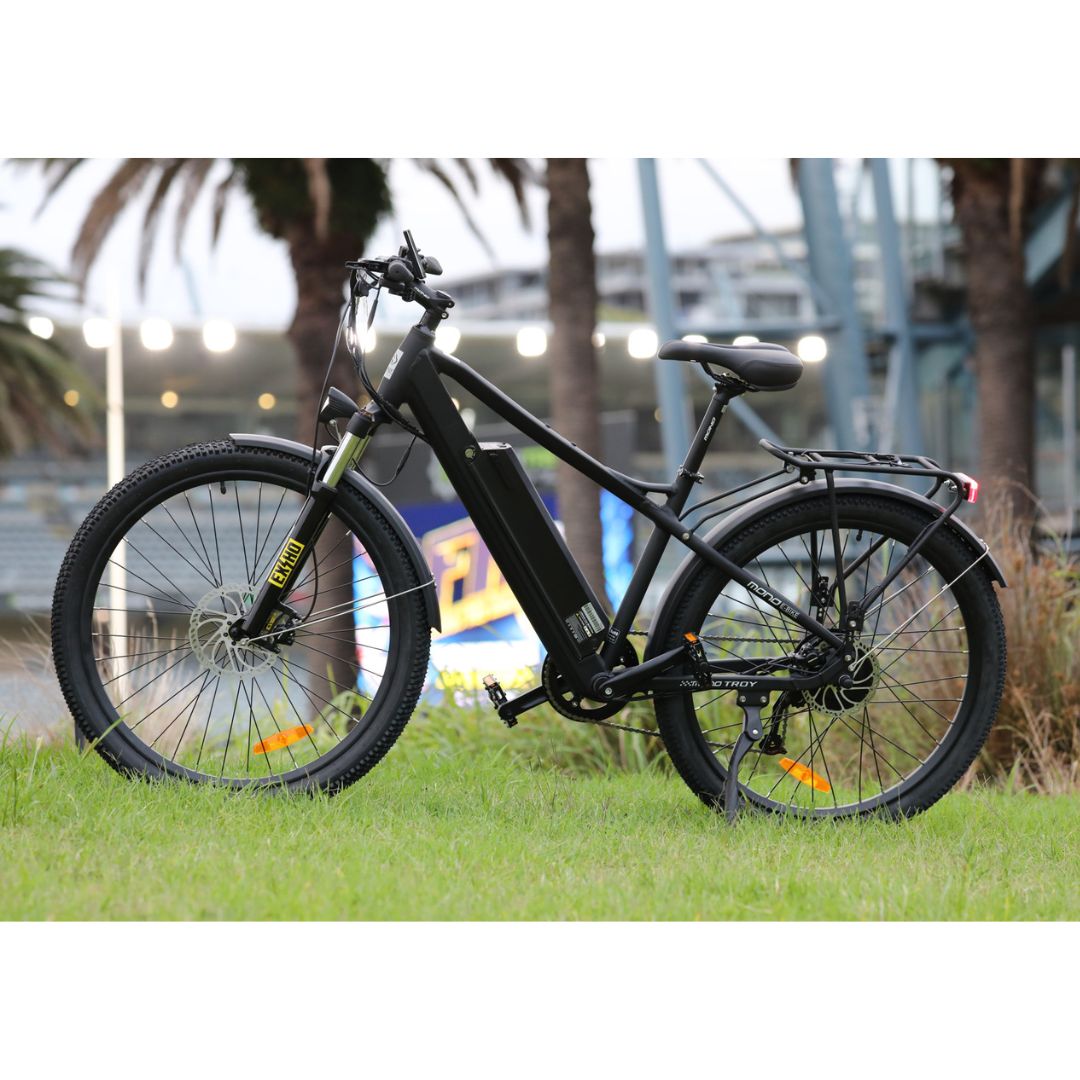

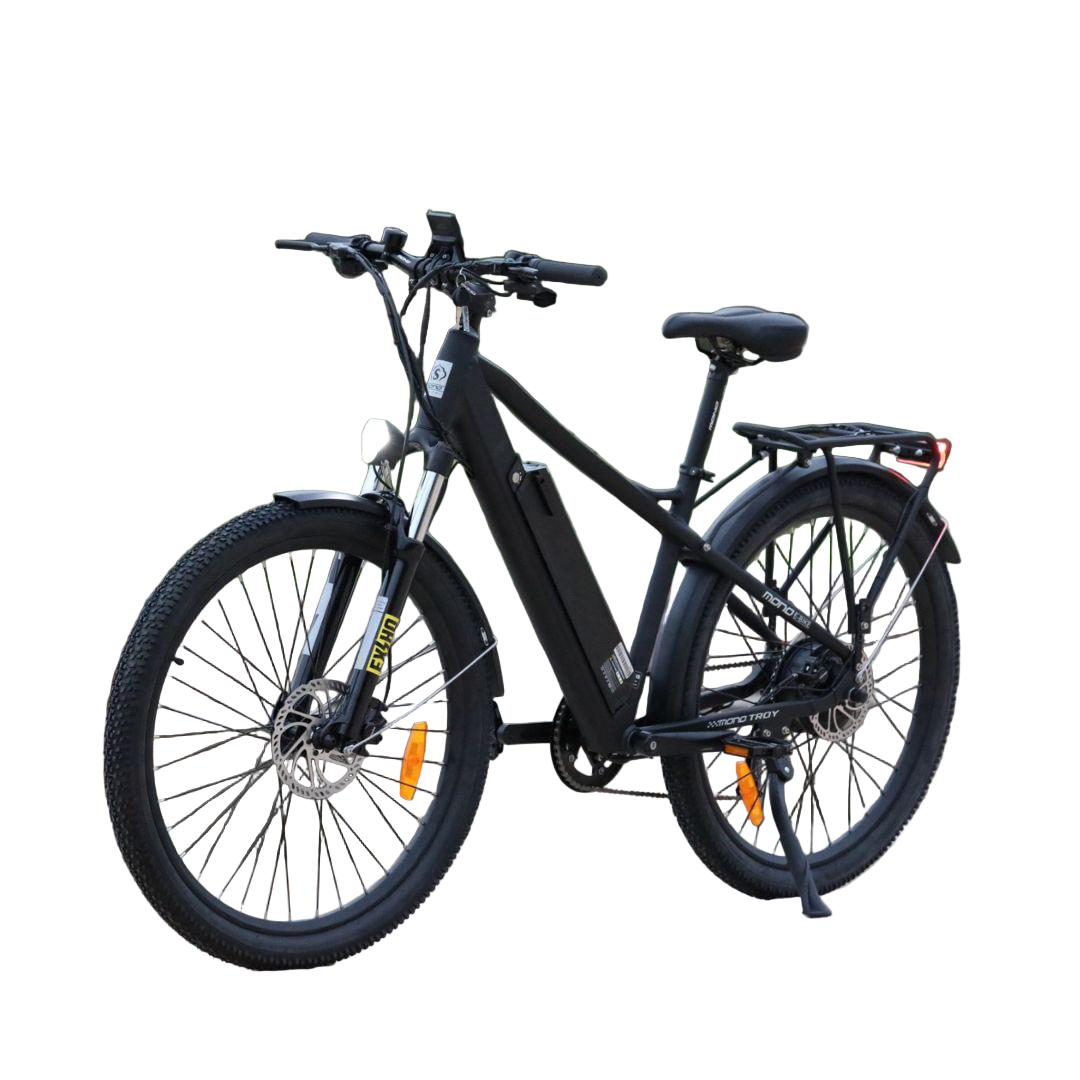

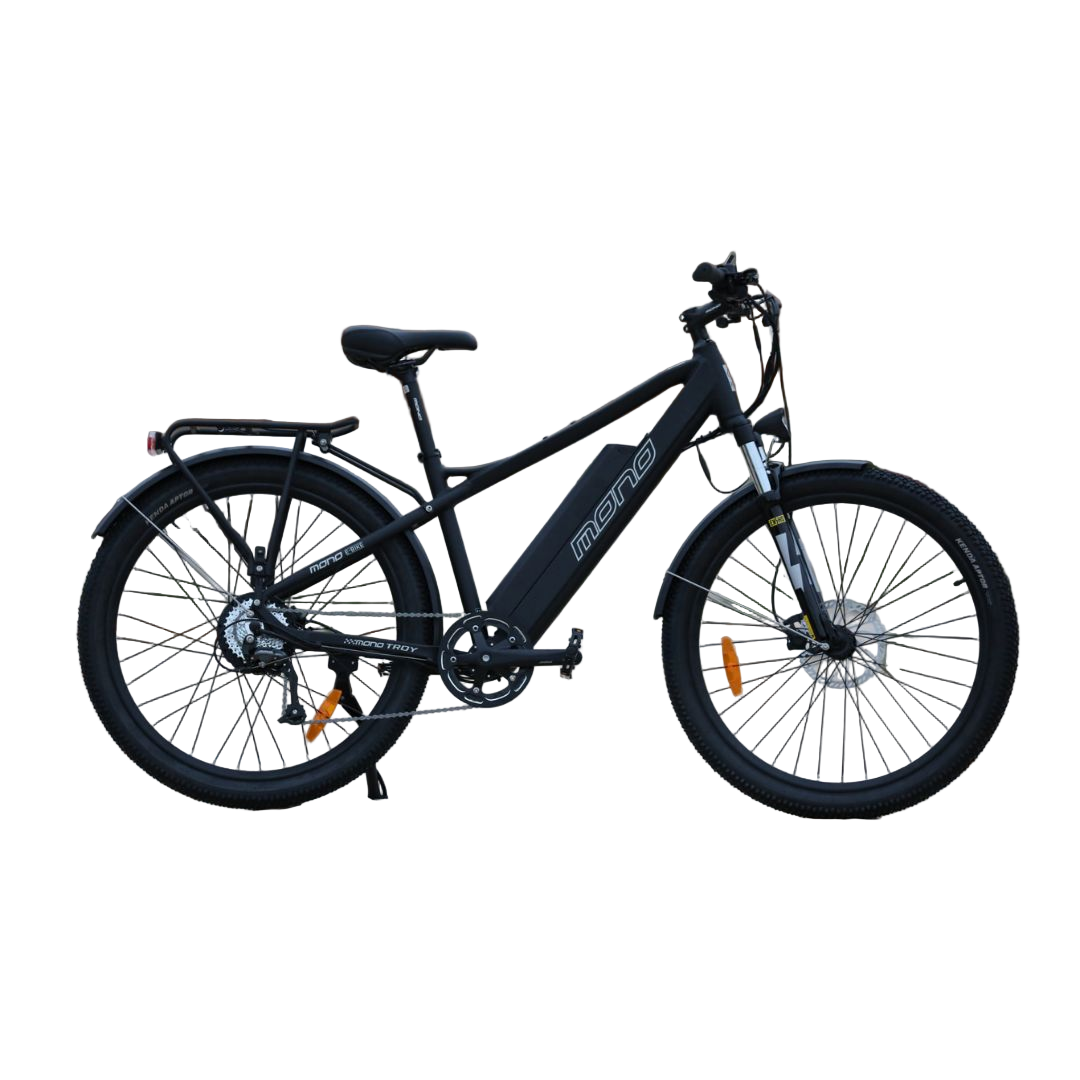

  The TROY EQP combines trail-ready power with everyday practicality. With a full commuter package including integrated lights, rear rack, and fenders, this hardtail EMTB is built for riders who want more from every ride — more terrain, more utility, more confidence.

Description

🔧 Core Specifications

• Frame: Aluminium-Alloy MTB Frame

• Fork: Lockable 120mm Front Suspension

• Seatpost: 320mm Quick Release

• Saddle: Comfort Padded Leather

• Handlebar: 71cm Aluminium-Alloy Bar

• Weight: 24.5kg (including battery)

• Max Load Capacity: 130kg

• Front Wheel: Quick Release Design

• Mudguards: Full Alloy Front & Rear

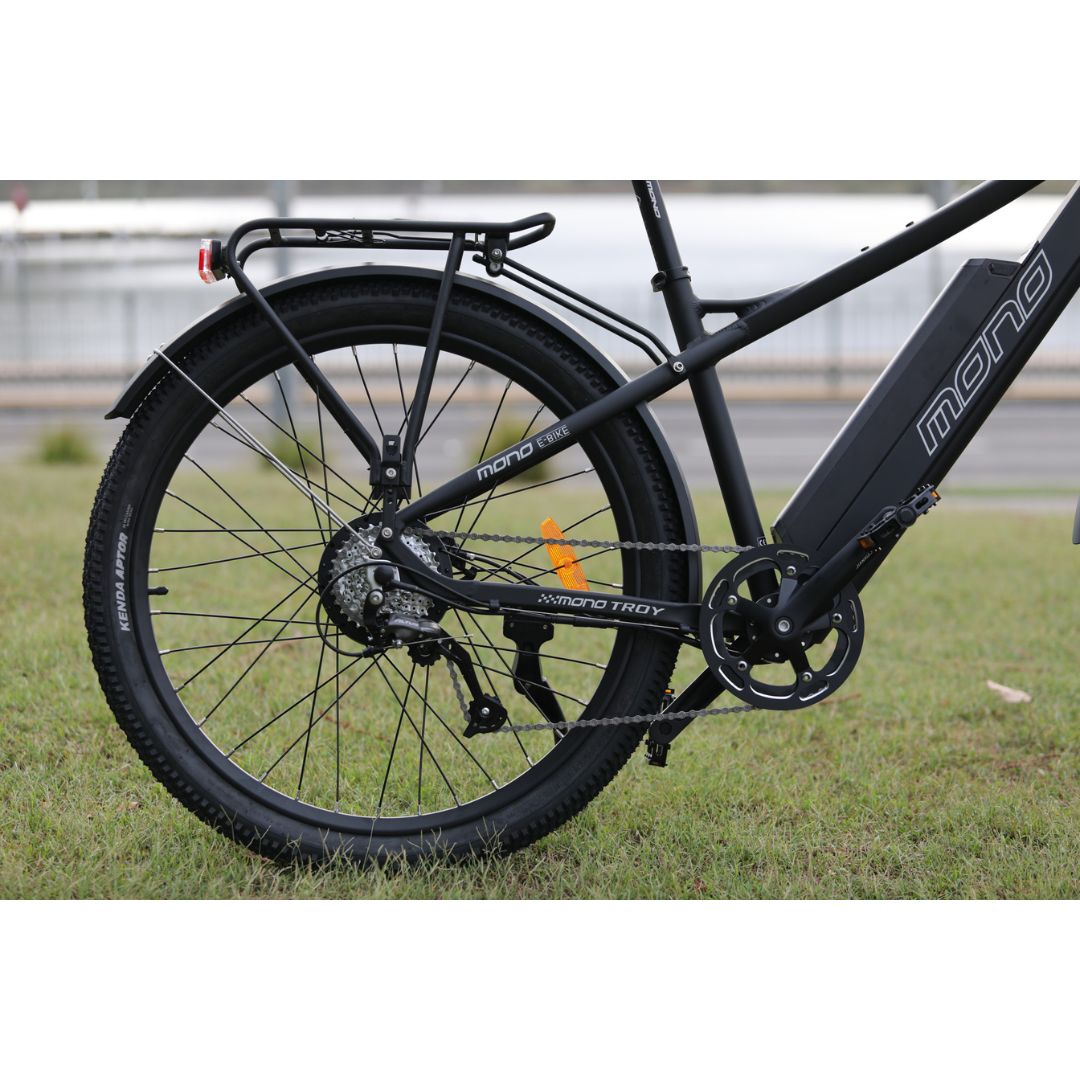

• Rear Rack: Integrated Alloy Rack

• Lights: Integrated Front & Rear with Brake Light System

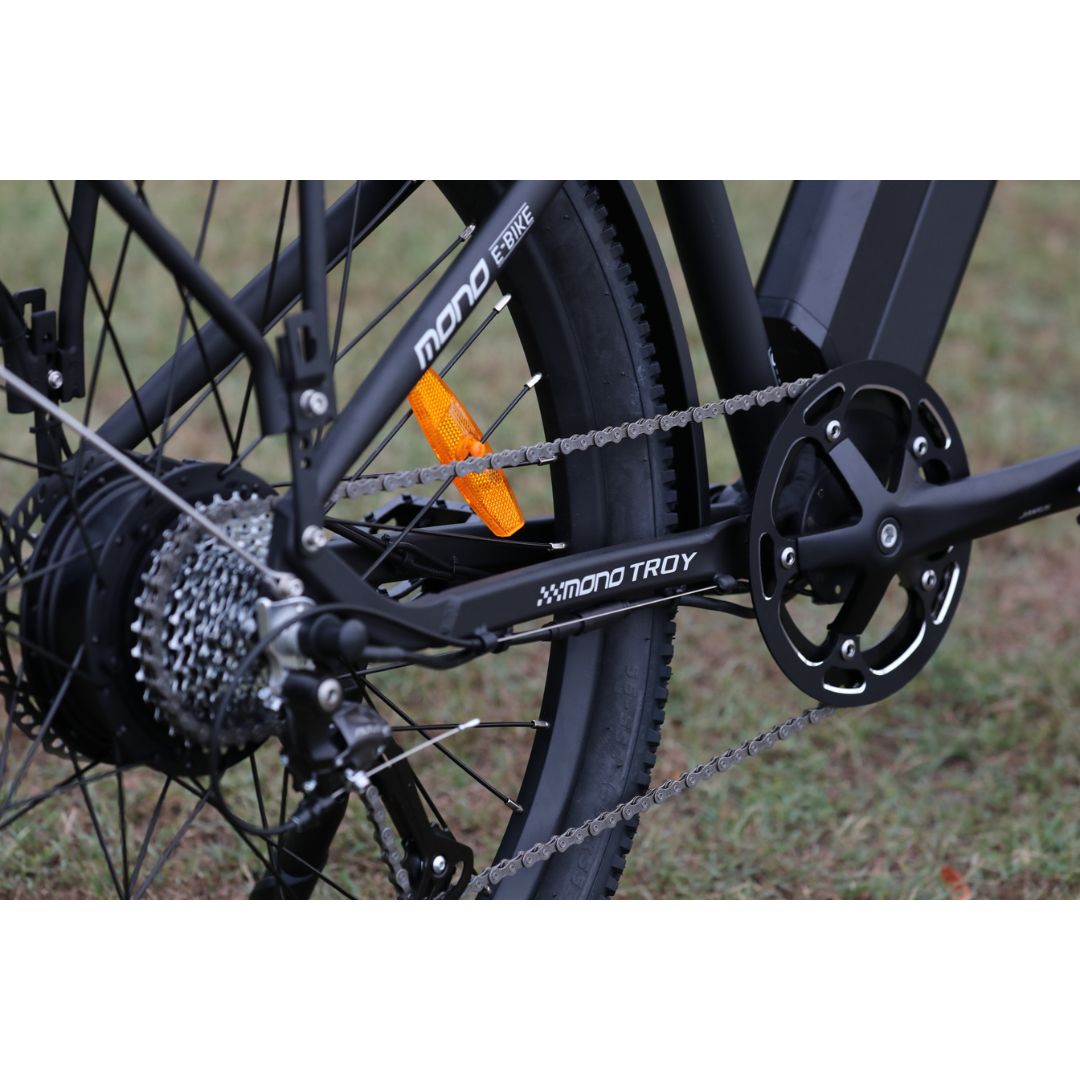

🔁 Drivetrain

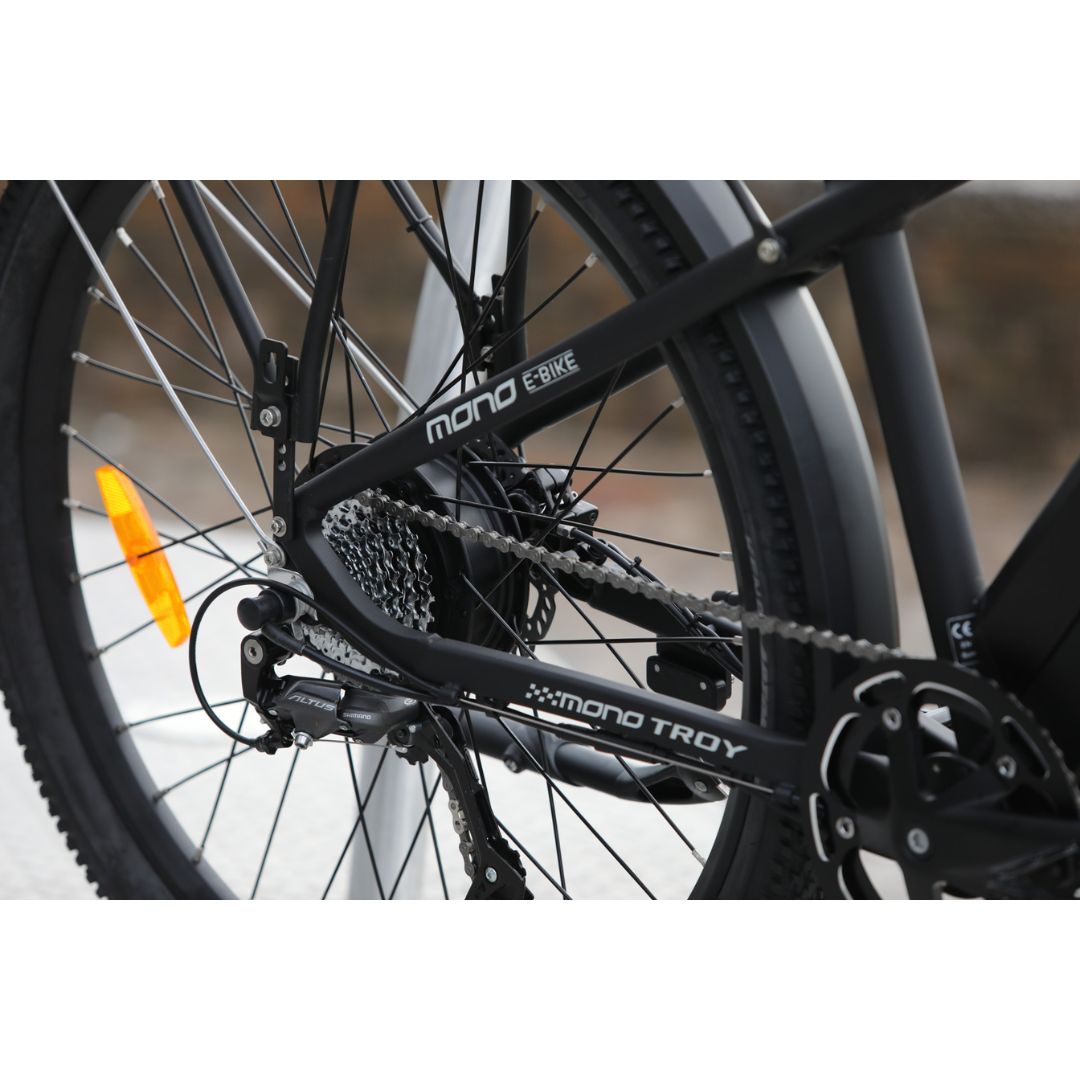

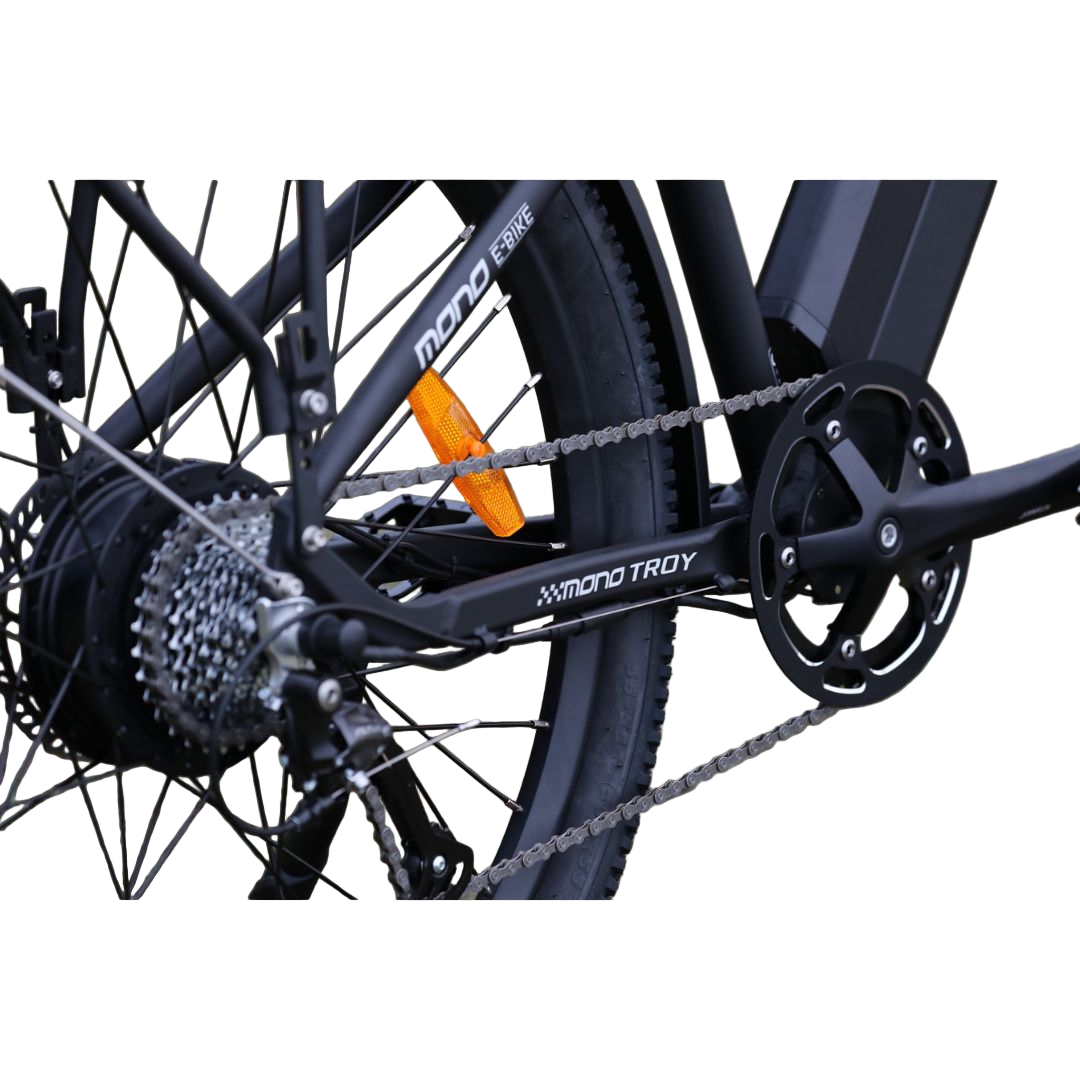

• Gearing: Shimano Altus 9-Speed Cassette with Trigger Shifter

• Cranks: Cotterless Alloy

🛞 Wheels & Tyres

• Wheel Size: 27.5”

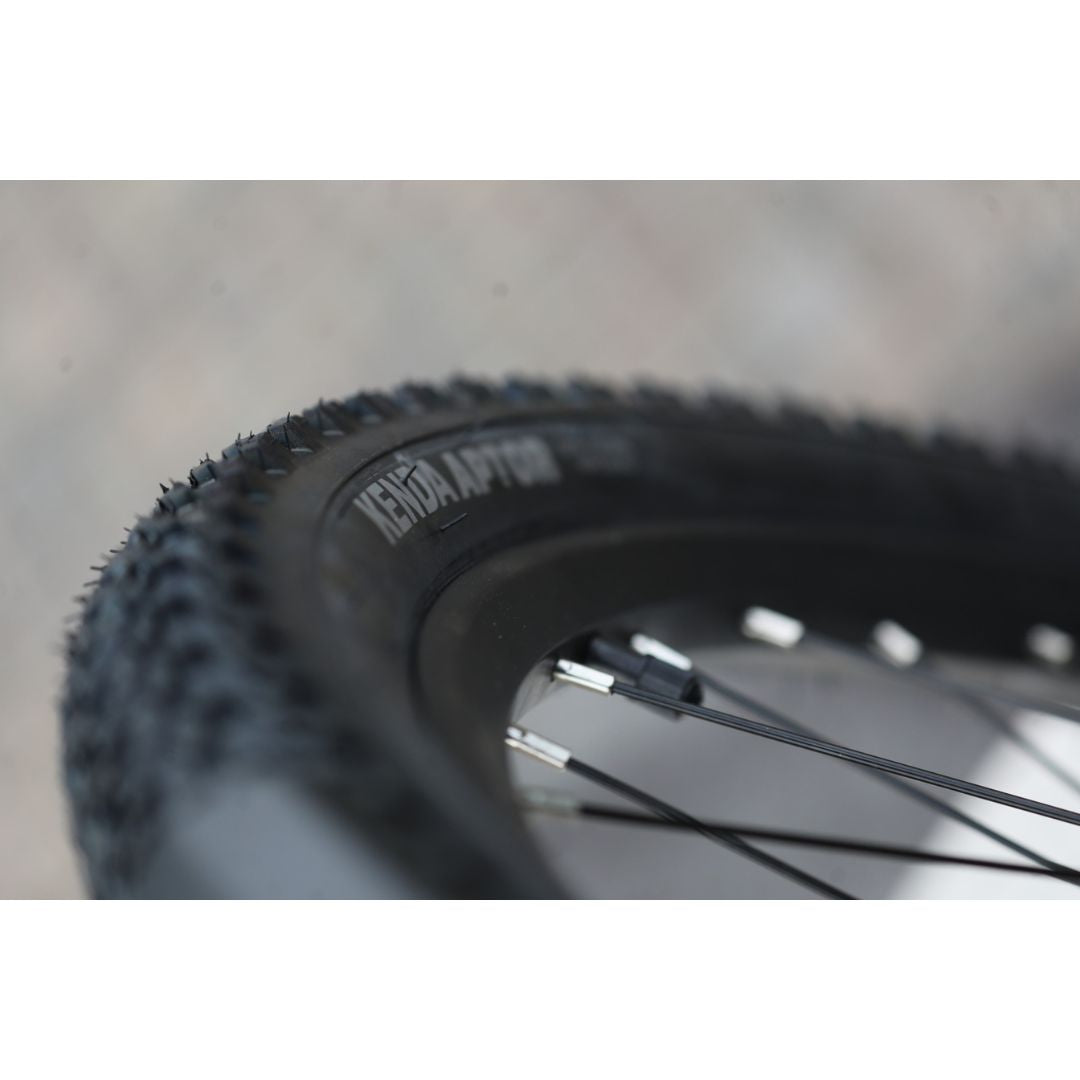

• Tyres: Kenda 27.5” x 2.1” All-Terrain

🛑 Braking System

• Front Brake: Gemma Hydraulic Disc – 180mm

• Rear Brake: Gemma Hydraulic Disc – 160mm

⚡ Electric System

• Motor: 48V 500W High Torque Rear Hub Motor (Peaks 750W)

  Power can be limited to 250W to meet local state regulations

• Battery: 48V 15Ah (720Wh) Lithium Battery with Samsung Cells

• Controller: 48V 18A

• Range: 60–80km per charge (depends on assist level & terrain)

• Pedal Assist: 5 Levels – Max Speed 25km/h

• Throttle: Included – limited to 6km/h (NSW compliance)

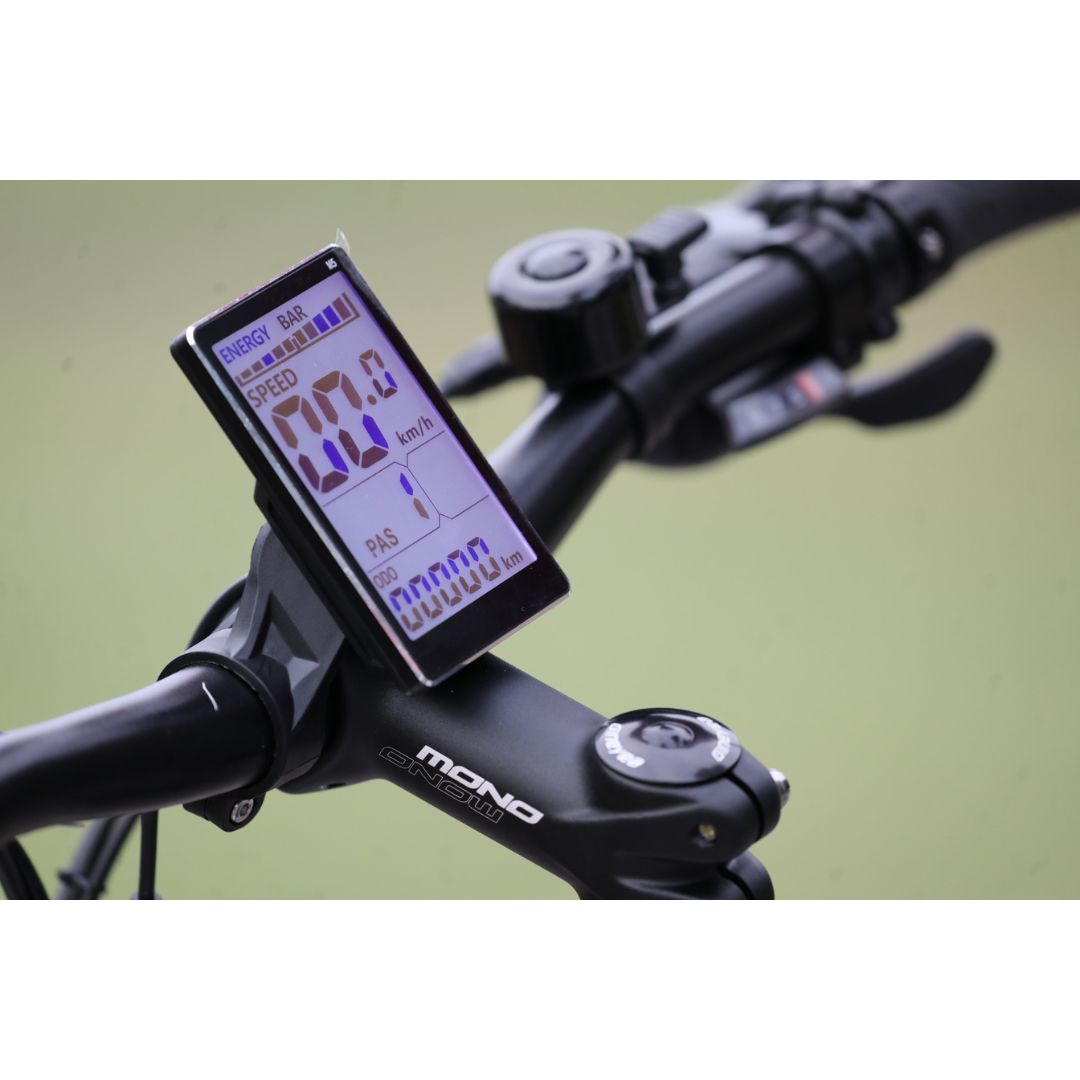

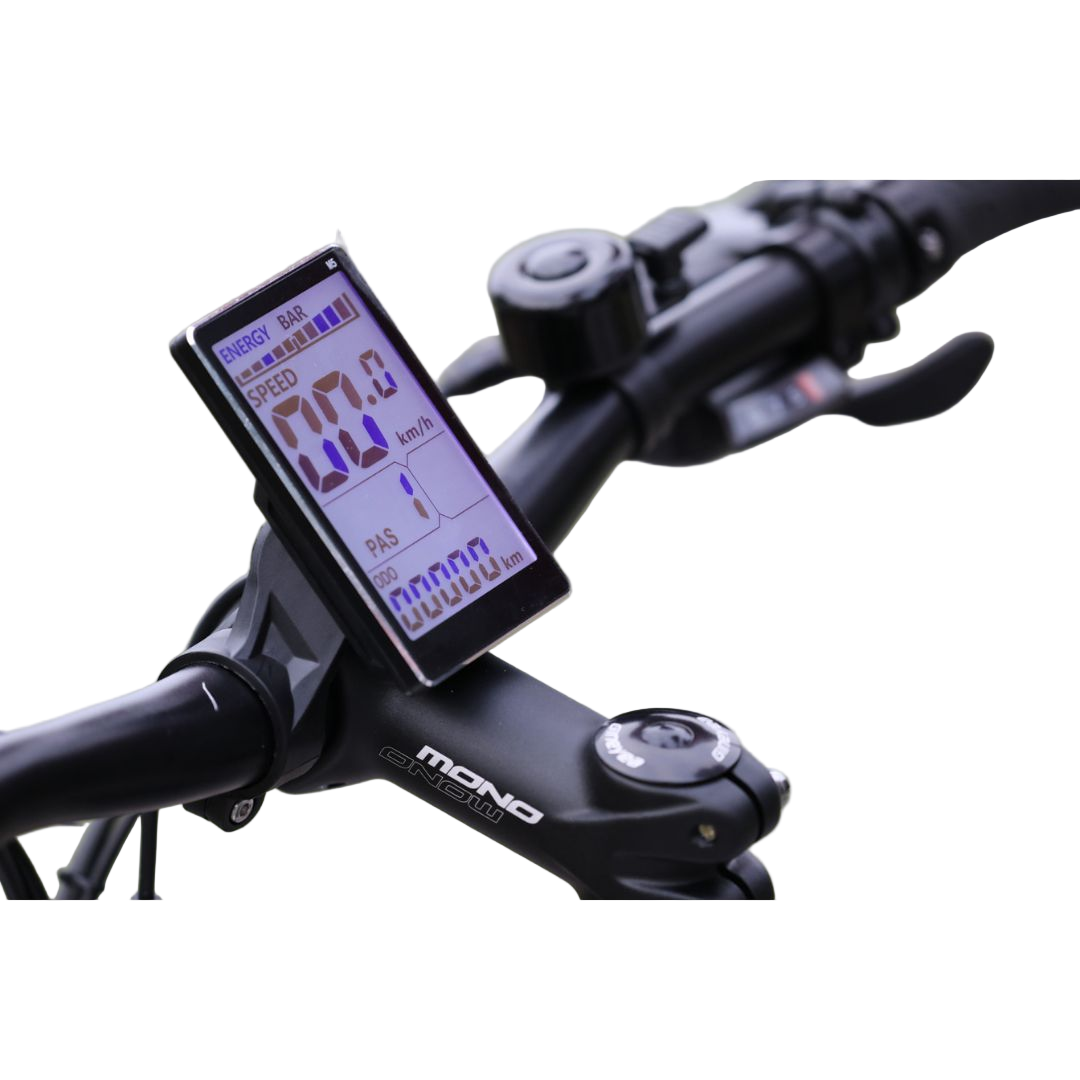

• Display: Multi-Function LCD Panel

• USB Output: Yes (1A port built into battery)

• Charge Time: Approx. 5–7 hours

🔌 Charger Specifications

• Output: 48V DC, 2.0A

• Input: 100–240V AC, 50/60Hz

• Connector: Mini Pin Plug (1-Pin Style)

• Plug: Australian Standard

• Safety Protections: Over-voltage, over-current, short-circuit

• Compatibility: E-MONO 48V Systems Only

🛠 Assembly & Maintenance

• This e-bike is shipped partially assembled.

• We recommend professional assembly by a certified bicycle mechanic.

• A follow-up check-up after one month is also advised to ensure all systems are secure and calibrated.

⚠️ Disclaimer

• This product complies with Australian e-bike laws and is limited to a max speed of 25km/h using pedal assist.

• Motor power can be limited to 250W to meet specific state regulations.

• Riders are responsible for checking and complying with local laws.

Additional Information

Size Chart

F. Overall Length 1840mm
