eMono JUNO Compact Fat Cruiser EMTB 6 Months Free Service

• 48V 500W HI-TORQUE MOTOR – 720WH SAMSUNG CELL BATTERY
• 24” x 3.2” KENDA FAT TYRES – MECHANICAL DISC BRAKES
• COMPACT FRAME FOR SMALLER RIDERS – LIGHT 21KG WEIGHT
• PEDAL ASSIST & THROTTLE

🔧 Core Specifications
• Frame: Lightweight Aluminium-Alloy Frame
• Fork: 50mm Front Suspension
• Seatpost: 320mm Quick Release
• Saddle: Comfort Leather Saddle
• Handlebar: 66cm Aluminium-Alloy Bar
• Weight: 21kg (including battery)
• Max Load Capacity: 120kg
• Front Wheel: Quick Release Hub
• Mudguards: Not included
• Rear Rack: Not included
• Lights: Optional Add-On

🔁 Drivetrain
• Gearing: Shimano Tourney 7-Speed Cassette with Shifter
• Cranks: Alloy

🛞 Wheels & Tyres
• Wheel Size: 24”
• Tyres: Kenda 24” x 3.2” Fat Tyres

🛑 Braking System

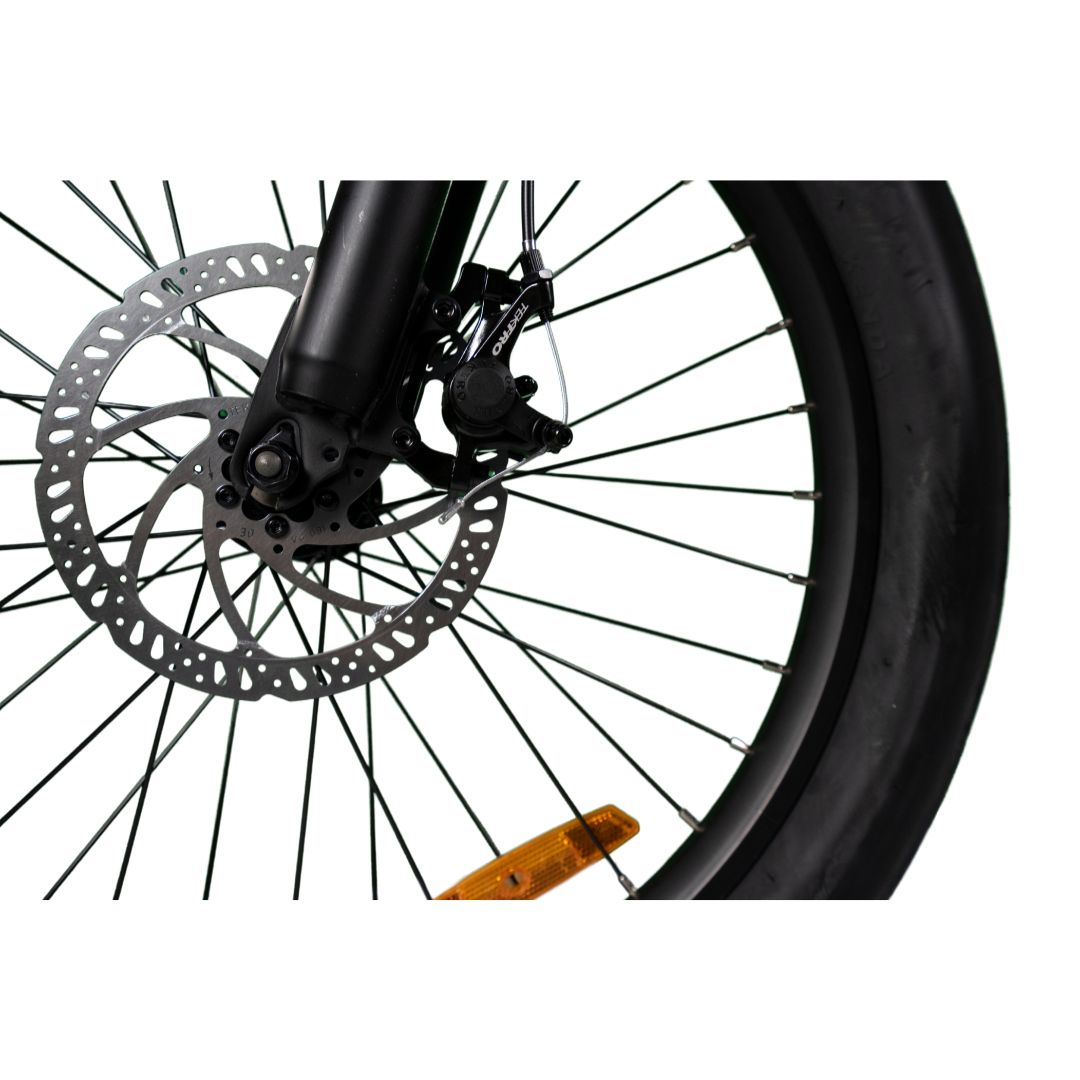

• Front Brake: Mechanical Disc – 180mm

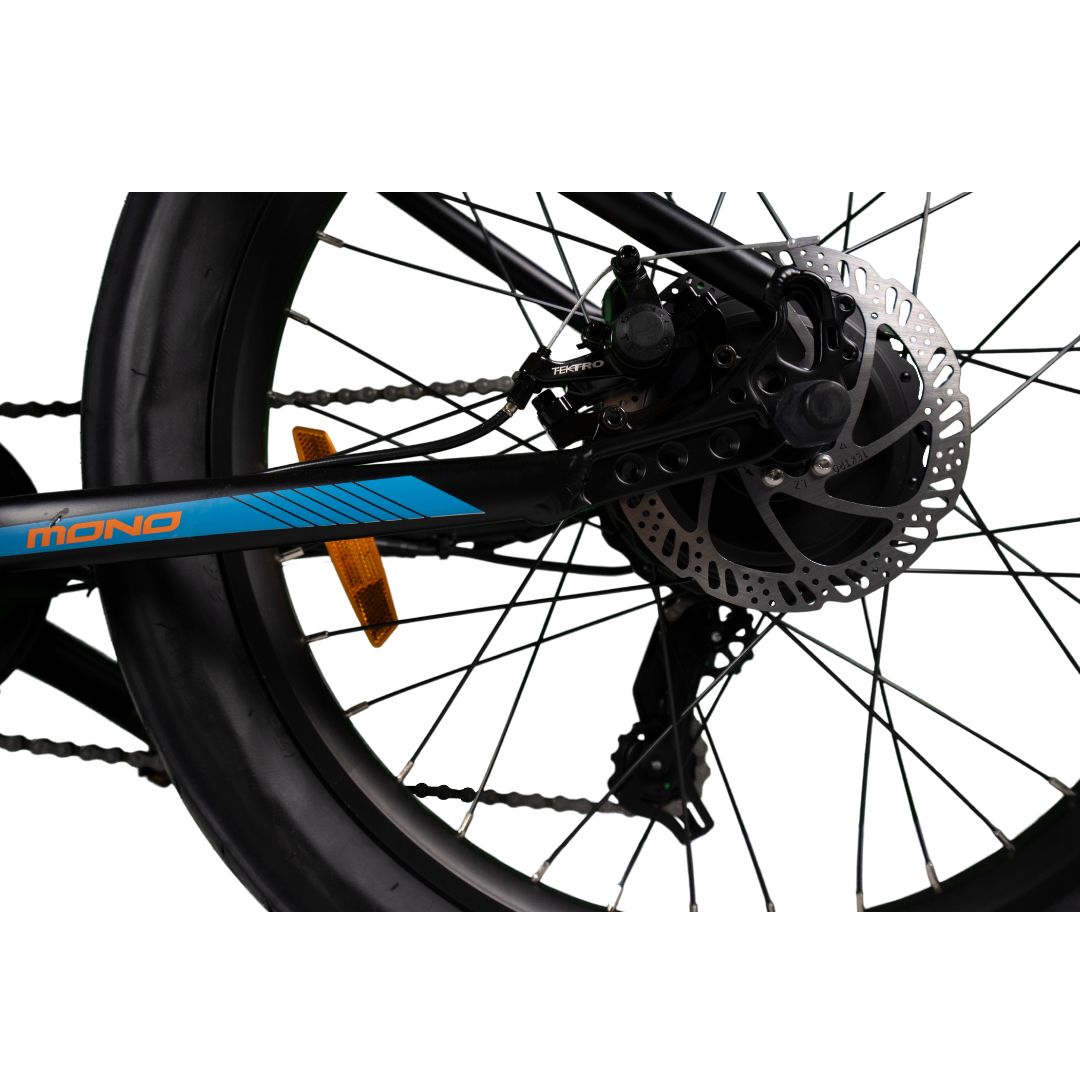

• Rear Brake: Mechanical Disc – 160mm

⚡ Electric System
• Motor: 48V 500W Brushless Rear Hub Motor (can be limited to 250W for compliance)
• Battery: 48V 15Ah (720Wh) Lithium Battery with Samsung Cells
• Controller: 48V 15A
• Range: 60–80km per charge (depends on assist level & terrain)
• Pedal Assist: 5 Levels – Max Speed 25km/h
• Throttle: Enabled – 6km/h Walking Pace (Compliant)

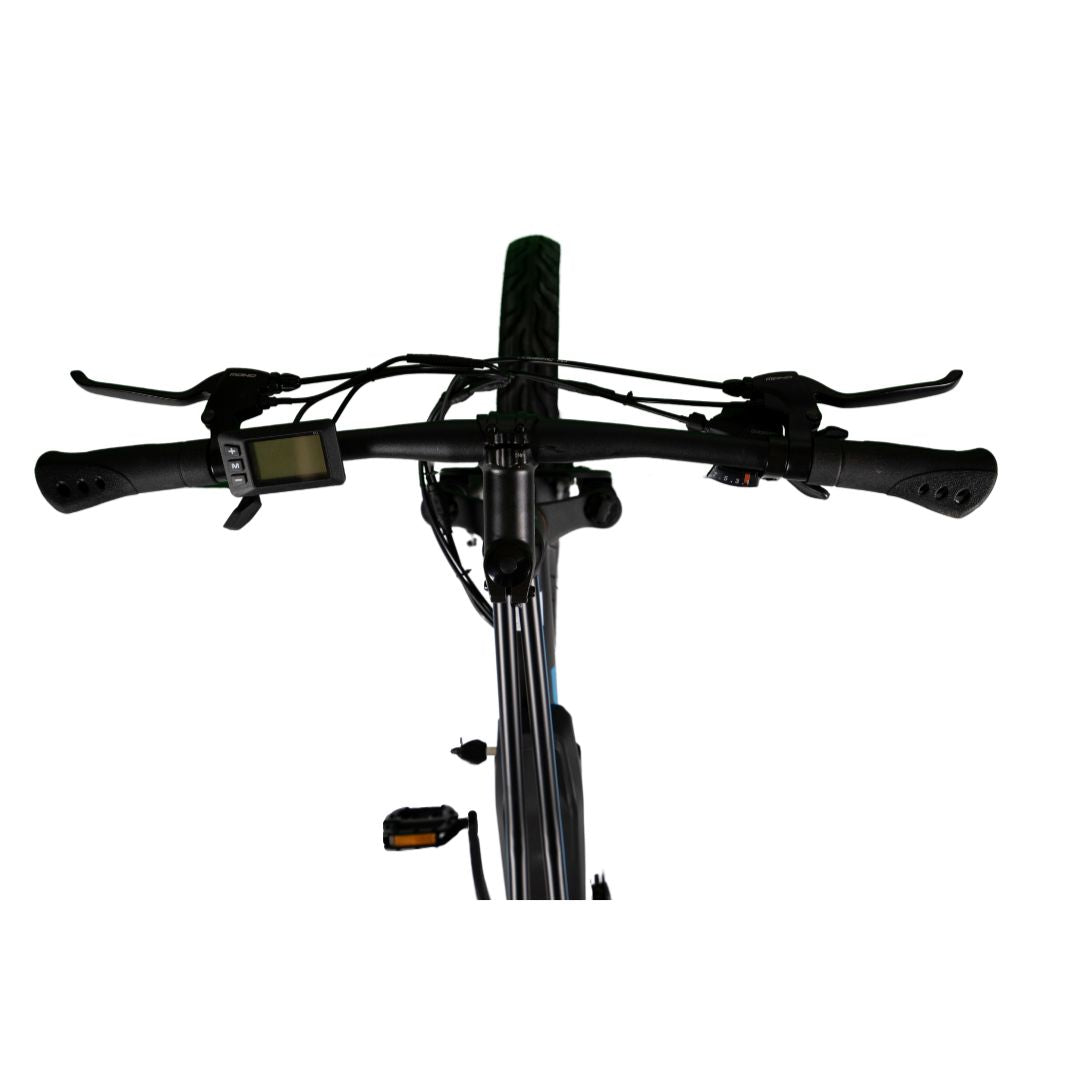

• Display: Multi-Function LCD Panel
• USB Output: Yes (1A output built into battery)
• Charge Time: Approx. 5–6 hours

🔌 Charger Specifications
• Output: 54.6V DC, 2.0A
• Input: 100–240V AC, 50/60Hz
• Connector: Mini Pin Plug (1-Pin Style)
• Plug: Australian Standard
• Safety Protections: Over-voltage, over-current, short-circuit
• Compatibility: E-MONO 48V Systems Only

🛠 Assembly & Maintenance
Your JUNO arrives 85% pre-assembled. We recommend final setup and safety checks by a certified bicycle mechanic. A tune-up after one month is also recommended to ensure proper alignment and calibration.

⚠️ Disclaimer
This product complies with Australian e-bike regulations and is limited to a maximum speed of 25km/h using pedal assist. The throttle is limited to 6km/h for walking assistance. The 500W motor can be electronically limited to 250W for use in states where required. Riders are responsible for ensuring compliance with local laws.

The E-Mono JUNO – Compact Fat Cruiser EMTB is the perfect choice for riders who prefer a smaller, more agile electric mountain bike without sacrificing power or fun. With a 24” frame, fat tyres, and a 500W rear hub motor, the JUNO delivers big performance in a lighter, more compact package. Whether you're exploring off-road trails or cruising through the city, JUNO brings stability, comfort, and rugged style.

Additional Information

Size Chart

F. Overall Length
