**Pre-Order price only until stock arrives**

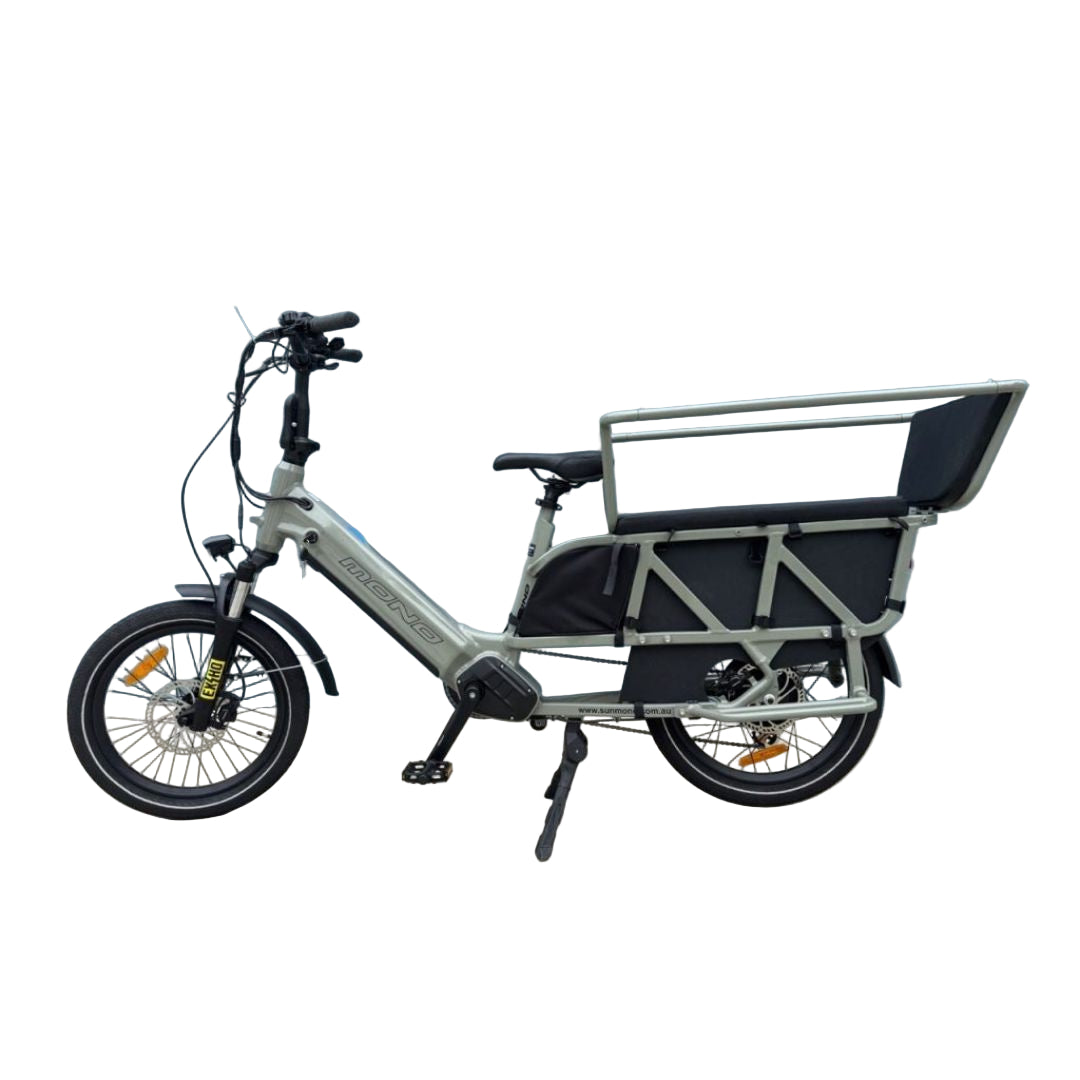

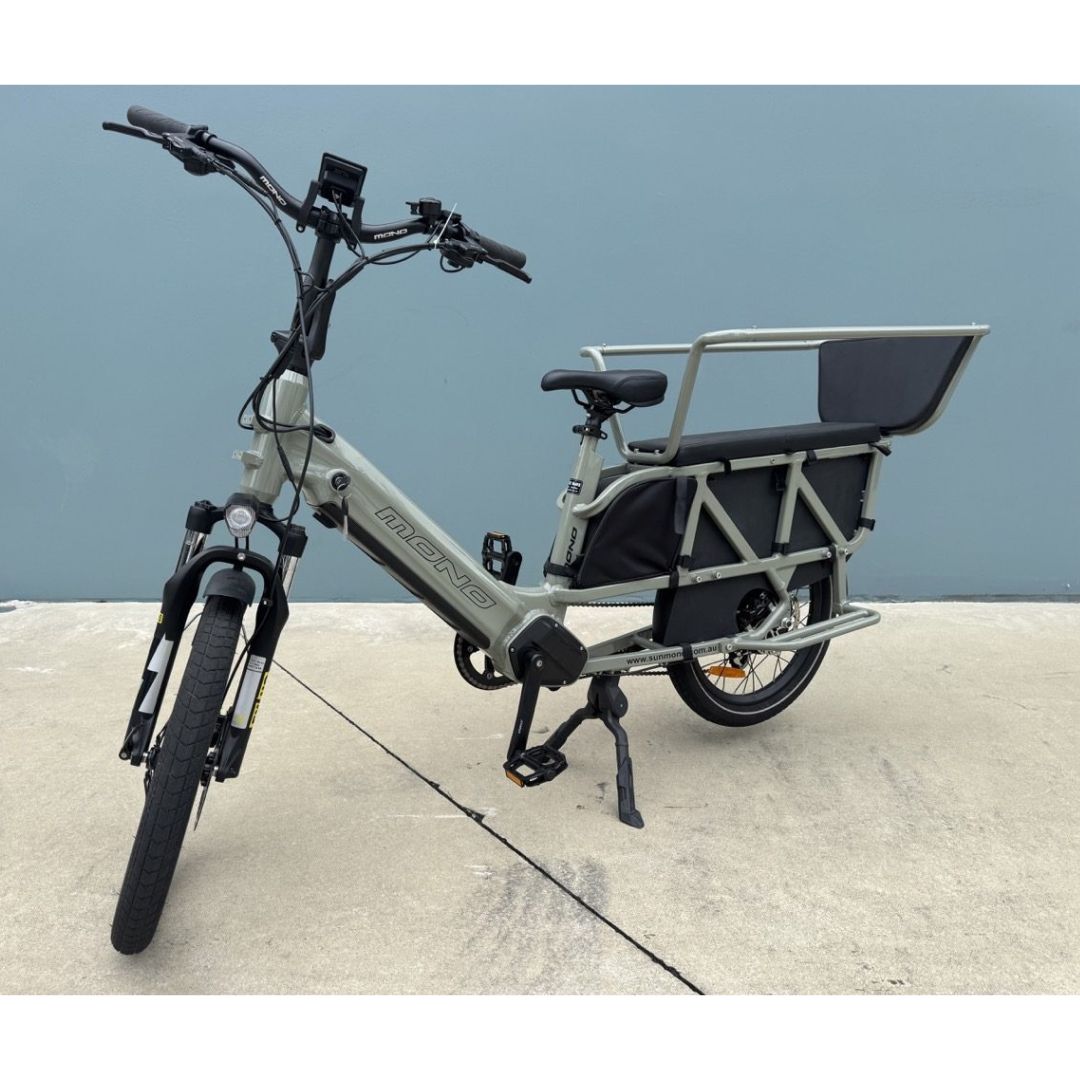

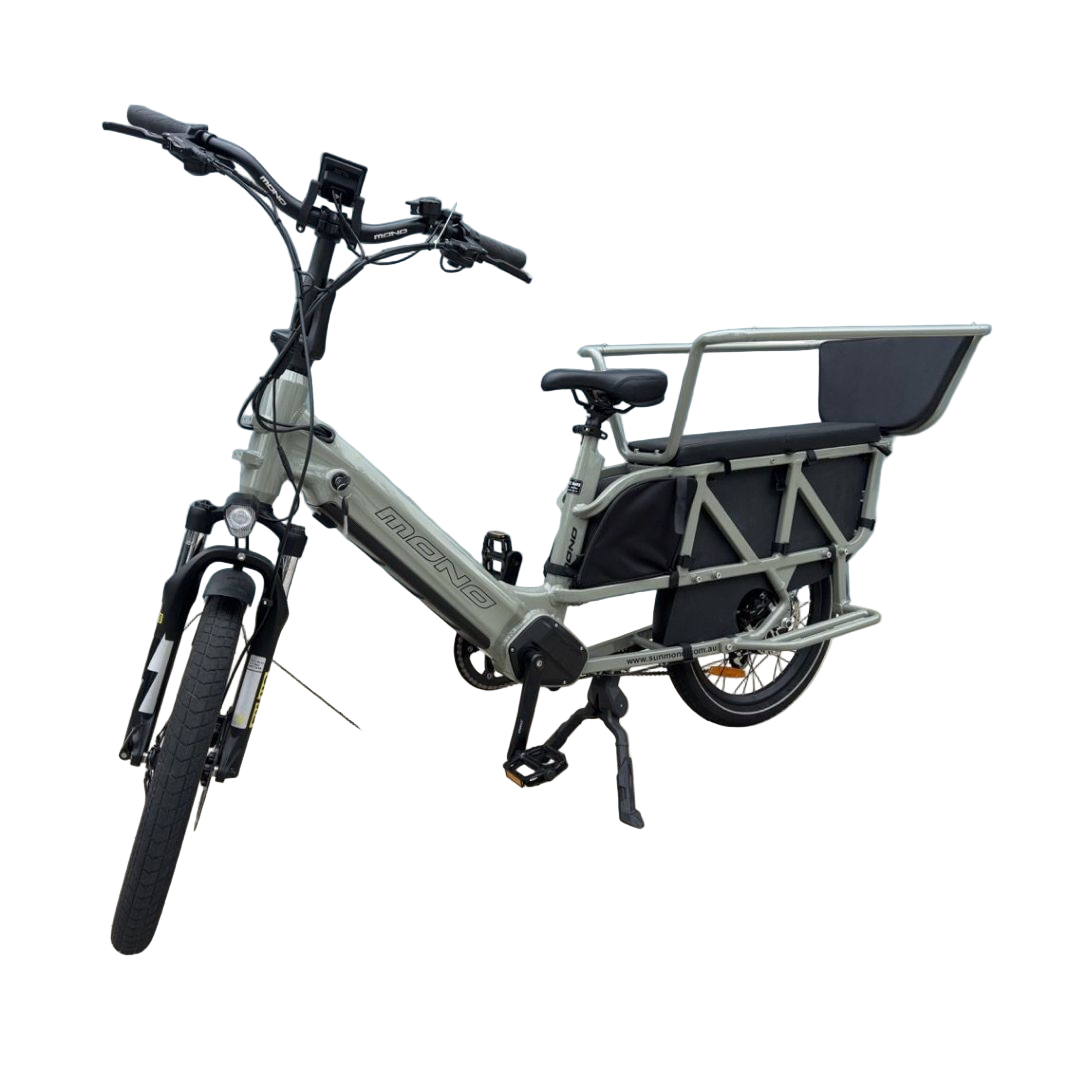

E-MONO ATLAS – Family Cargo E-Bike

• 48V HI-TORQUE MOTOR – 720WH SAMSUNG BATTERY

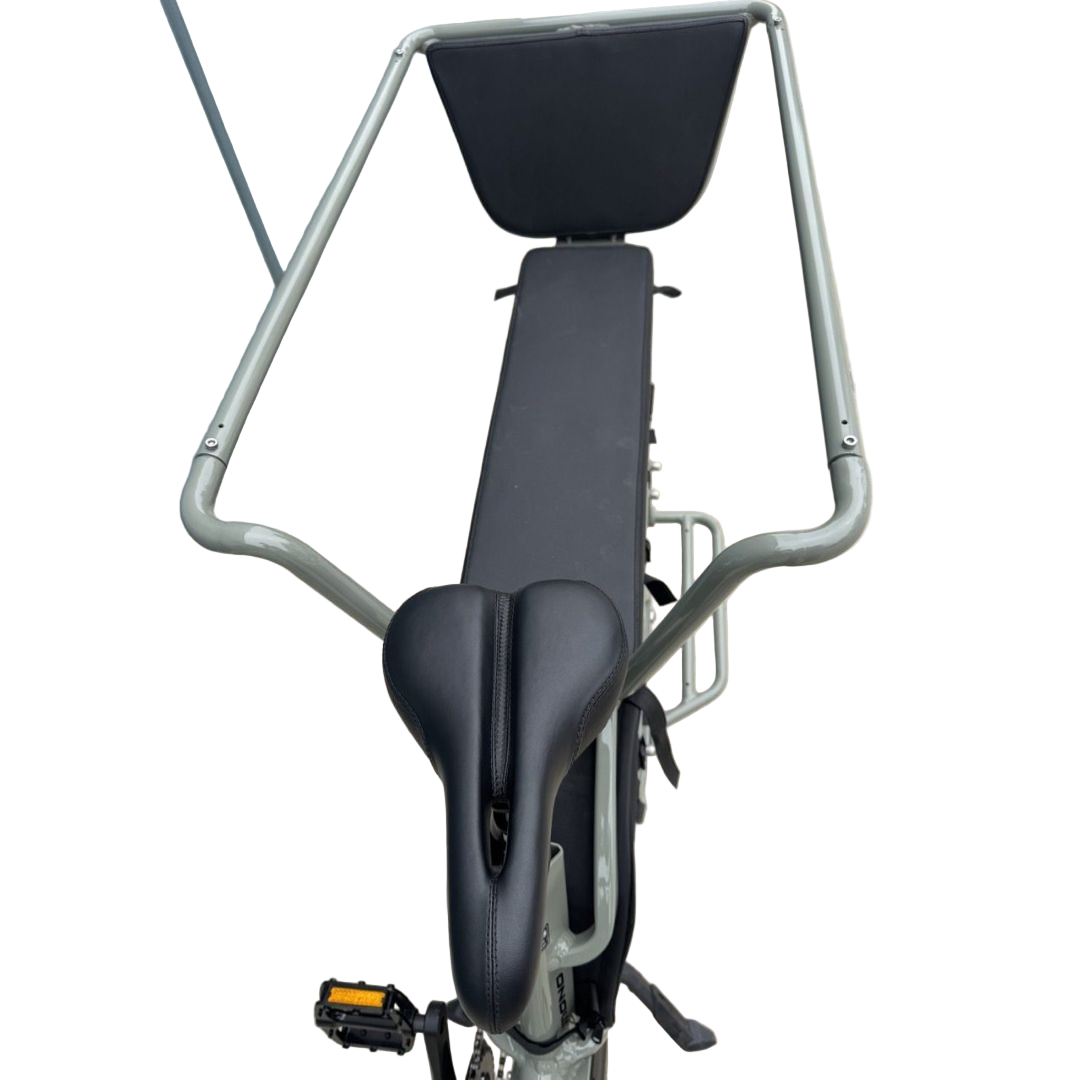

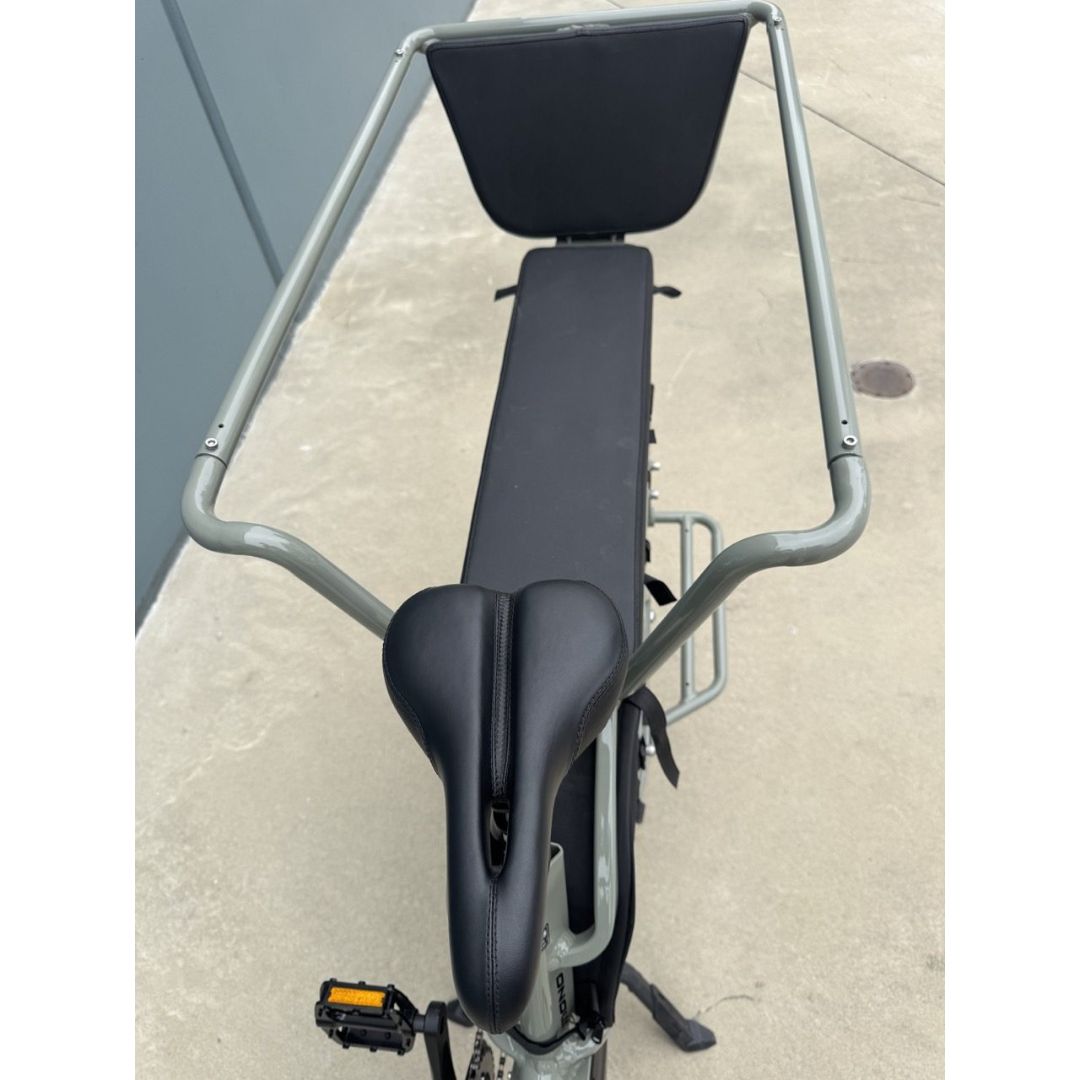

• REAR MONKEY BARS, CUSHIONS & RUNNING BOARDS INCLUDED

• HYDRAULIC DISC BRAKES – SHIMANO 8-SPEED GEARING

• 20” WHEELS – 190KG LOAD CAPACITY

The E-MONO ATLAS is a purpose-built longtail cargo e-bike designed to simplify family transport. With a reinforced low-step frame, 20” wheels for better balance and control, and included rear accessories like monkey bars and footboards, it's ready to carry kids or cargo right out of the box. A high-torque 48V motor and 720Wh Samsung battery provide smooth pedal assist and confident control even under full load. Whether you're doing school runs or city errands, the ATLAS replaces the car with freedom, stability, and fun.

Description

🔧 Core Specifications

• Frame: Reinforced Aluminium-Alloy Longtail Cargo Frame

• Fork: 100mm Lock-Out Suspension Fork

• Seatpost: 320mm Dropper-Style

• Saddle: Comfort Padded Leather

• Handlebar: 71cm Comfort Alloy Bar

• Weight: 32kg (including battery)

• Max Load Capacity: 190kg

• Passenger Accessories Included: Rear Monkey Bars, Cushions, Running Boards

• Front Wheel: Quick Release Design

🔁 Drivetrain

• Gearing: Shimano Altus 8-Speed Cassette with Trigger Shifter

• Cranks: Cotterless Alloy

🛞 Wheels & Tyres

• Wheel Size: 20” Front and Rear

• Tyres: Kenda 20” x 2.4” Puncture-Resistant

🛑 Braking System

• Front Brake: Gemma Hydraulic Disc – 180mm

• Rear Brake: Gemma Hydraulic Disc – 160mm

• Lighting: Integrated Front & Rear Lights with Auto Brake Light

⚡ Electric System

• Motor: 48V 500W Brushless Rear Hub Motor (Peak 750W)

• Battery: 48V 15Ah (720Wh) Lithium Battery with Samsung Cells

• Range: 60–85km per charge (dependent on load, terrain & assist level)

• Pedal Assist: 5 Levels – Max Speed 25km/h (road legal)

• Throttle: Preset to walking speed (for pushing only)

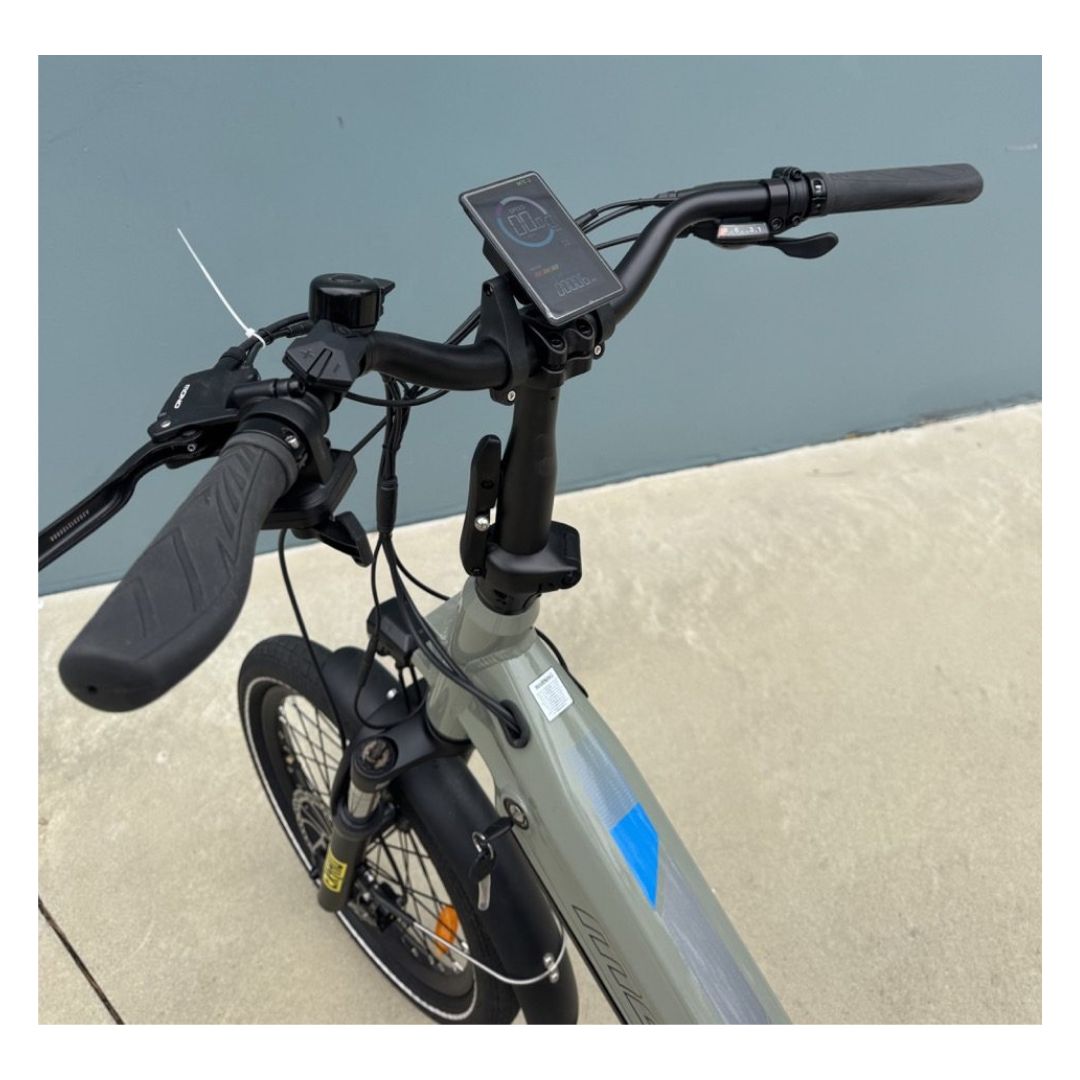

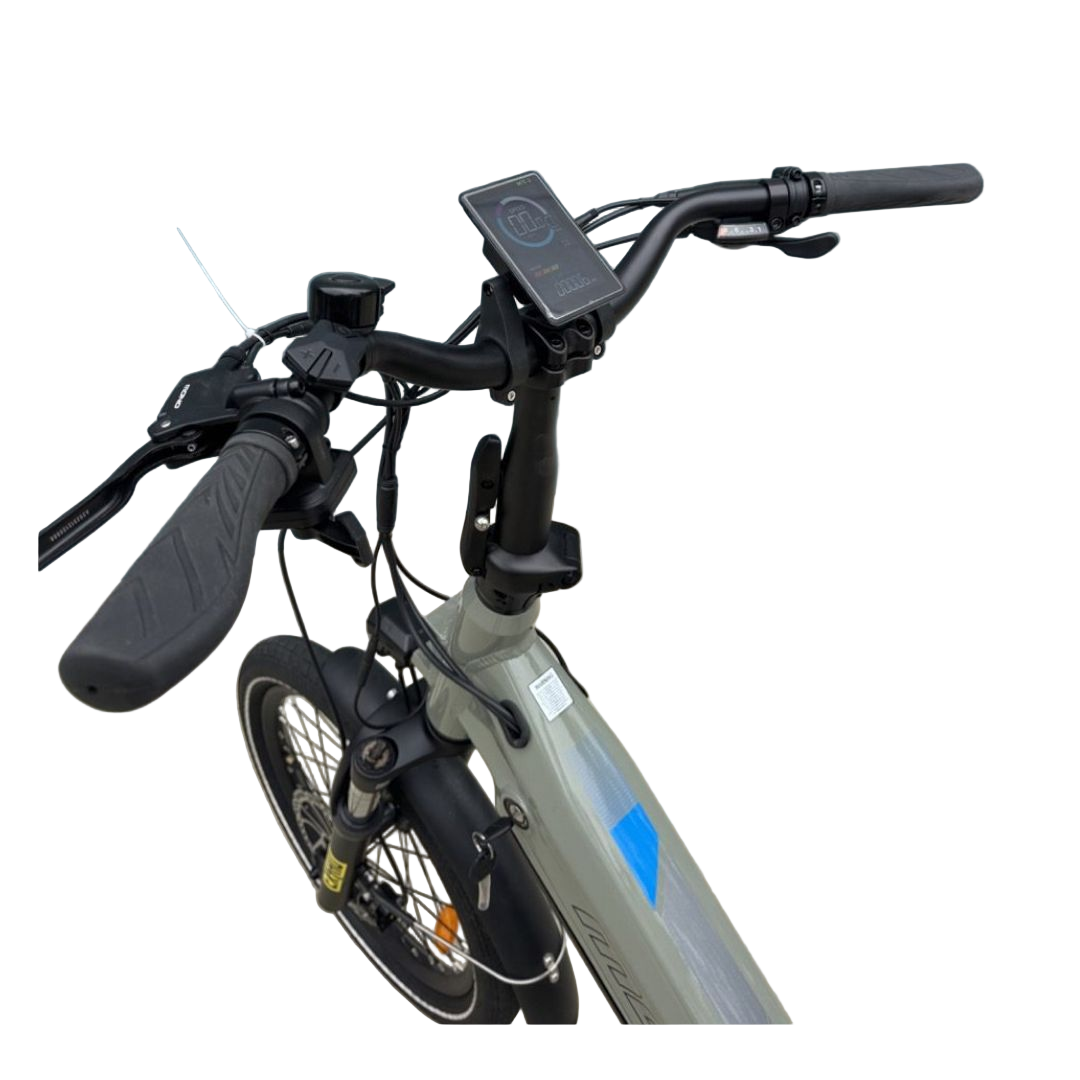

• Display: LCD M7 Multi-Function Display with USB Charging Port

• Controller: 48V 18A

• Charge Time: Approx. 5–7 hours

• USB Output: Yes (for device charging)

🔌 Charger Specifications

• Model: DPLC 110V55

• Output: 54.6V DC, 2.0A

• Input: 110–240V AC, 50/60Hz

• Connector: 1-Pin DC Barrel

• Certifications:

  • CE Certified

  • UKCA Compliant

  • SAA Approved (Australia)

• Safety Protections: Over-voltage, over-current, short-circuit, reverse polarity

• Plug: Australian Standard

• Manufacturer: Wuxi DPower Electronic Co., Ltd.

🧒 Child Seat Compatibility

The rear rack is compatible with most major child seat brands (e.g. Thule Yepp Maxi, Urban Iki, Polisport). You can use one or two seats, or combine with the included monkey bar system. Always check mounting compatibility and follow local safety guidelines.

🛠 Assembly & Maintenance

Your Atlas arrives 85% pre-assembled. We recommend final assembly and tuning by a qualified bicycle mechanic. A general safety check after the first month is also recommended.

⚠️ Disclaimer

This product complies with Australian e-bike regulations and is limited to a maximum speed of 25km/h using pedal assist. We recommend having your e-bike assembled and tested by a certified bike mechanic. Always wear a helmet and follow local road rules.
